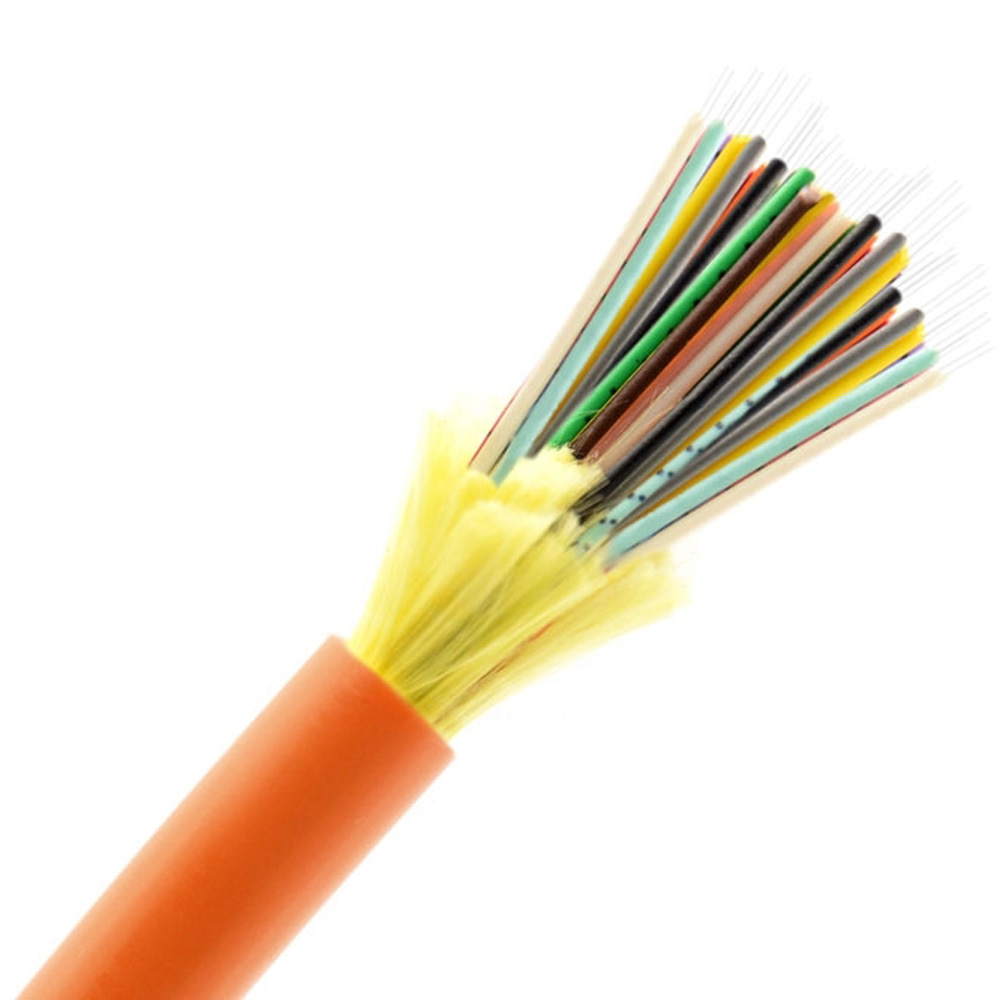

Multimode Fiber Optic Distribution Cable 1-288core,Distribution Tight Buffer(GJFJV)

Short Description:


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Tight-buffered multi-core distribution fiber optic cables are available in optical fiber counts from 2 to 144.These kinds of fiber optic cables are designed for both indoor and outdoor applications.
    Distribution cables are available in plenum, riser, unitized & non-unitized constructions which fit a wide array of general purpose installations.Their small bend radius and 900μm tight-buffered fibers allow for fast installations and easy terminations.

    2$)X[KSNSY$P8_}APBZTDNS NNF5CQB[O$`6_MD38Q0PM[H

    Multimode fiber optic cable has a large diametral core that allows multiple modes of light to propagate. Because of this, the number of light reflections created as the light passes through the core increases, creating the ability for more data to pass through at a given time. Because of the high dispersion and attenuation rate with this type of fiber, the quality of the signal is reduced over long distances. This application is typically used for short distance, data and audio/video applications in LANs. RF broadband signals, such as what cable companies commonly use, cannot be transmitted over multimode fiber.

    Multimode fiber is usually 50/125 and 62.5/125 in construction. This means that the core to cladding diameter ratio is 50 microns to 125 microns and 62.5 microns to 125 microns.

    Multimode 62.5-micron OM1 cable is the first generation of multimode fiber optic cabling. It is an affordable way to deploy Gigabit Ethernet at distances of up to 275m. You can double the distance to 550m as well with mode-conditioning patch cord, and it even supports 10-Gigabit Ethernet over short runs.

    distribution fiber cable

    They are available in dozens of configurations such as:

    • Indoor plenum fiber optic cable
    • Indoor/outdoor riser singlemode cable
    • Direct burial cable
    • Self-supporting aerial cable
    • 2-fiber patch cord cables
    • 6-144 strand singlemode cables

    Product Name:Distribution Tight Buffer Optical Cable

    Model:GJFJV

    Application:

    ☆.Adopted to indoor distribution.
    ☆.As pigtail of communication equipment.
    ☆.Suitable for communication equipment served.
    ☆.Suitable for floor connection.

    Characteristics:

    ☆.Hight strength kevlar yarn member.
    ☆.More tight buffered design.
    ☆.Round construction.
    ☆.Saft. Easy to strip.

    Technical Parameters:

    Cable Count

    Out sheath
    Diameter

    Weight

    Minimum allowable Tensile Strength
    (N)

    minimum allowable Crush Load
    (N/100mm)

    Minimum Bending Radius
    (MM)

    Storage
    temperature

    (MM)

    (KG)

    short term

    long term

    short term

    long term

    short term

    long term

    (℃)

    02

    3.0

    15.00

    600

    200

    1000

    200

    10D

    20D

    -20+60

    04

    4.0

    22.00

    600

    200

    1000

    200

    10D

    20D

    -20+60

    06

    4.0

    23.00

    600

    200

    1000

    200

    10D

    20D

    -20+60

    08

    5.0

    27.00

    600

    200

    1000

    200

    10D

    20D

    -20+60

    10

    5.0

    30.00

    600

    200

    1000

    200

    10D

    20D

    -20+60

    12

    6.0

    35.00

    600

    200

    1000

    200

    10D

    20D

    -20+60

    24

    8.3

    46.00

    600

    200

    1000

    200

    10D

    20D

    -20+60



    Optical Characteristics:

    Fiber Sort

    Multimode

    G.651

    A1a:50/125

    Graded-index fiber

    A1b:62.5/125

    Singlemode

    G.652(A、B、C)

    B1.1:Conventional fiber

    G.652D

    B2: Zero  dispersion shifted

    G.655

    B1.2 :Cut-off wavelength shifted

    G.657(A1、A2 、B3)

    B4: Main technical data for positive
      dispersion shifted single-mode fiber

    Tags: Distribution Tight Buffer(GJFJV) GJFJV
