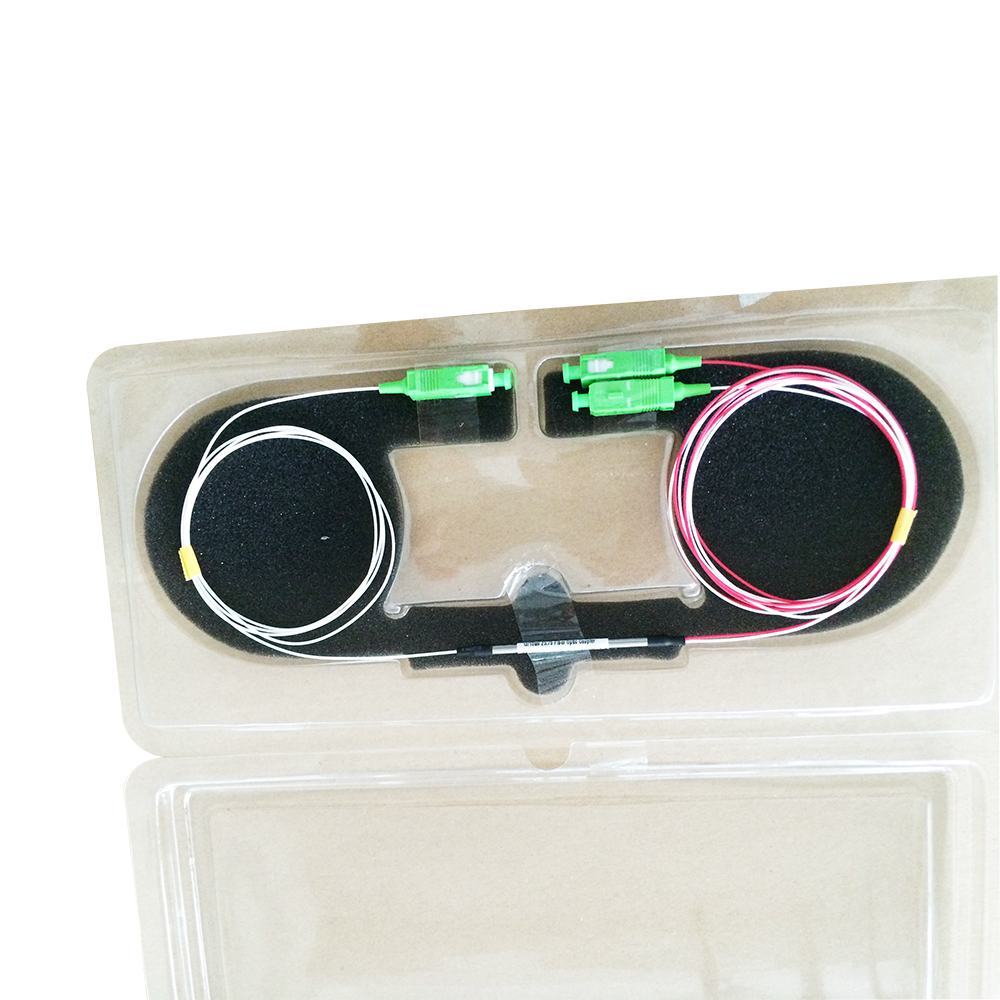

1×2 FBT 1310nm Fiber Optic Splitter

Supply High Performance 1*2 Dual Window Coupler Use For Fiber Optic Communication Systems

FBT (Fused Biconical Splitter ) utilizes precision technology to combine or distribute light from single/multiple inputs to single/multiple outputs bi-directionally. They are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.

10G-Link can provide customized FBT splitters in a variety of styles, sizes, port configurations, split values, and wavelength specifications, allowing a high degree of flexibility in tailoring the product to suit your precise requirements and application.

coupler 拼图

Features:

Low insertion loss
Various coupling ratio
High return loss and excellent uniformity.
Low Polarization dependent loss
Environmental stable
Operation wavelength: 1260nm to 1650nm
Operating Temperature:-40℃ to 85℃

Application:

FTTx systems
Optical LAN, Metro, WAN networks
Passive optical networks
CATV networks
ABS box splitter_副本

Specification:

Table 1 – 1×N PLC optical splitter

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating wavelength (nm)

 1260~1650

Fiber type

G657A or other request

Insertion Loss (dB) (S/P)

 4.0/3.8

 7.3/7.0

 10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Uniformity (Max.,dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss(dB) (S/P)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization dependent loss (dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss

 (dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature stability(-40~85 ℃)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (℃)

-40~85

Storage temperature(℃)

-40~85

Device package size

 (mm)  (L×W×H)

40×4×4

40×4×4

40×4×4

50×4×4

50×7×4

60×12×4

Module Box Dimensions

 (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

Micro Module Size

 (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

N/A

Table 2 – 2×N PLC Optical Splitter

Parameter

2×2

2×4

2×8

2×16

2×32

Operating wavelength (nm)

 1260~1650

Fiber type

G657A or other request

Insertion Loss (dB)(S/P)

 4.2

 7.6

 11.0

14.5

17.5

Uniformity (Max.,dB)

0.8

1.5

1.5

2.0

2.5

Return loss(dB) (S/P)

50/55

50/55

50/55

50/55

50/55

Polarization dependent loss (dB)

0.2

0.2

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

Wavelength Dependent Loss

 (dB)

0.3

0.5

0.5

0.5

0.5

Temperature stability (-40~85 ℃)(dB)

0.5

0.5

0.5

0.5

0.5

Operating Temperature (℃)

-40~85

Storage temperature (℃)

-40~85

Device package size

 (mm)  (L×W×H)

40×4×4

50×4×4

50×4×4

50×7×4

60×7×4

Module Box Dimensions

 (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

Micro Module Size

 (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

Note:

1. Specification without fiber optic connectors;

2. Each connector will add loss 0.2dB.

FBT Datesheet

FBT 插图02

FBT 指标

PLC – Planar Lightwave Circuit Splitter Advantages

Suitable for multiple operating wavelengths (1260nm – 1650nm); unstinted.
Equal splitter ratios for all branches.
Compact configuration; smaller size; small occupation space.
Good stability across all ratios.
High quality; low failure rate.

FBT – Fused Biconical Splitter Advantages

The product is well-known and is easy to produce, thus reducing cost of production.
Splitter ratios can be customized.
Can work on three different operating bands (850nm, 131 Onm, and 1550nm).
