24 Fibers LC to LC 10G OM3 50/125 Multimode MultiFiber PreTerminated Breakout Trunk Cable with Connector Protection both side

Product Introduction

A fiber optic trunk cable is a convenient and economical alternative to running multiple fiber optic jumpers or individual fiber optic cables. It can have from 4 to 144 fibers per trunk and distribute multiple Data channels.
10G-Link offers kinds of factory pre-terminated trunk fiber optic patch cables with custom connector configurations, breakouts, labels, and jacket material types.
Trunk patch cables are also important part of Plug & Play cabling system, features high-density, factory terminated, factory tested. This fiber connectivity solution allows connection from central patch locations to work areas quick, simple and cost effective, without need for unnecessary splicing or terminations in the field.


分支跳线插图

Pre-terminated Cable Assembly Solution

Pre-terminated Cable connect between floors and wiring centers for vertical and horizontal fiber distribution they will provide a flexible interconnection to the electronic equipment,passive optical devices.

This cable can terminated with FC,SC,ST,LC,MU connectors,etc.
1.LC to LC SM 9/125, MM 50/125 or 62.5/125 breakout fiber optic patch cord
2. Built on 4-144 fiber trunk cable
3. LC, SC, FC,ST or MTRJ connectors factory pre-terminated
4. 2.0mm fanout, with breakout kit
5. LC clippers pre-assembled as per customer request
6. Minimum 300mm fan out length
0.9mm 12FO 规格插图
4-24芯  2.0mm 12FO 插图

Features:

1. Factory pre-terminated, eliminates the need for field terminations or splices, save on-site labor cost
2. Multi-fiber solutions from 4 fiber up to 144 fibers regularly
3. Single-mode 9/125, Multimode 50/125 or 62.5/125, Multimode 10Gig fiber cable for option
4. Full Range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available
5. PC (Physical Contact), UPC (Ultra Physical Contact) or APC (Angled Physical Contact) connector end-face polish available
6. 100% factory tested with complete test results
7. Customized length, staggering, connector type, fan-out style, and labeling
8. Pulling eye available for connecter protection, on-site easy and quick installation

Application:

Our premium low loss range of patch cords are suitable for telecom, datacom, data center and some critical applications. The patch cords provide flexible interconnection to active equipment, passive optical devices and cross-connects.

Used as interconnection or cross-connection in

1. Data center cabling
2. Backbone cabling
2. Fiber To The Home(FTTH)
3. Various kinds of testing and self-control system

Product Specification (Parameter) of Pre-terminated Fiber Patch Cable

4-144接头规格插图

  • Performance
    • Each Cable is custom made in the China by Skilled Technicians (no assembly lines)
  • • The cable is made with Genuine Corning Infinicore 300 glass for superior performance.
  • • Insertion loss testing performed on every assembly. Our strict standards mandate a maximum allowable loss if 0.02 dB (or less)
  • • Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants or other imperfections.
  • • All cables serialized and test results are recorded
  • • Guaranteed performance specifications
  • • The cable is duplex 2.0mm cable jacket which is the most popular
  • • OFNP Rated for Plenum or Riser use

Company and Products advantages:

  1. The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
    2.Good supply capacity(20K-30K pieces connectors each day)
    3.Fast delivery time(1-3days)
    4.Complied to ISO9001 quality system
    5.100% testing before shipment
    6.3D passed testing with report for option
    7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)

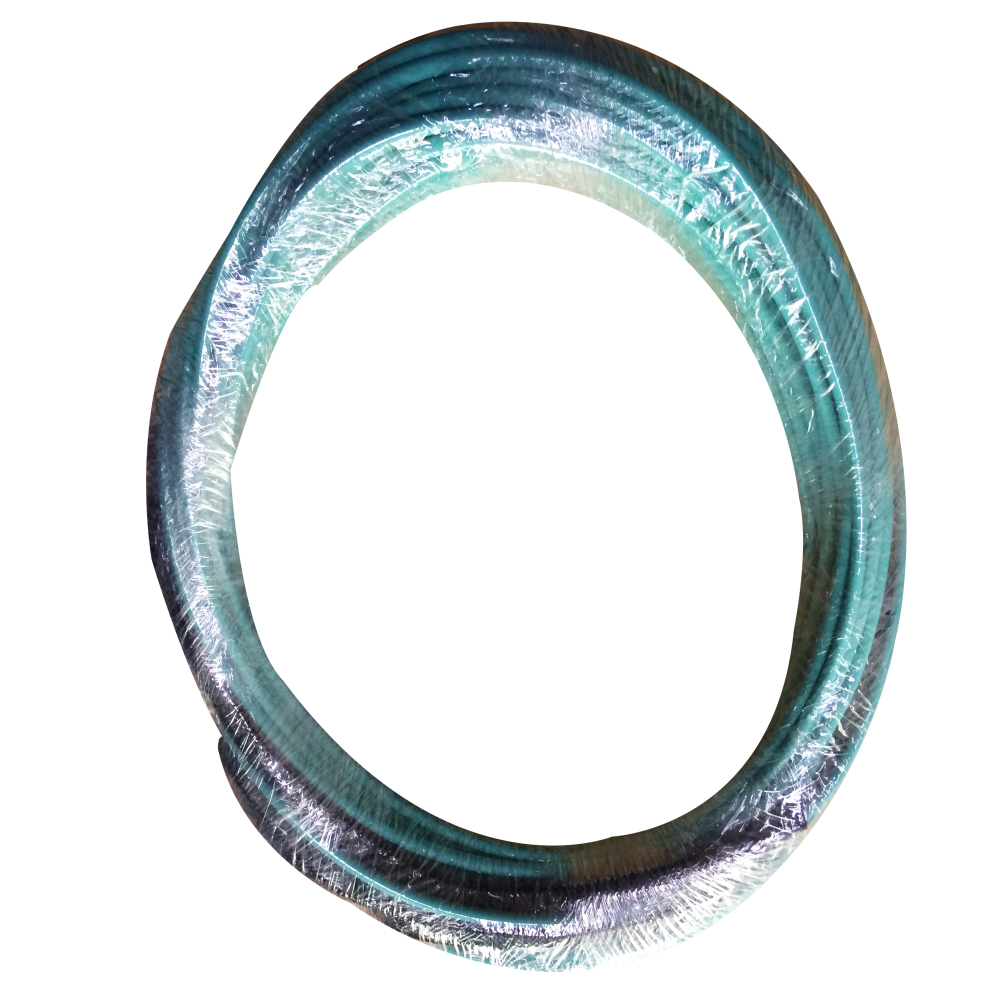

Packing Reference:

带卷线轴

包装线轴

Payment and Shipping Terms

Estimated Lead Times: 1-2 business days (or possibly more depending on quantity).

Payment terms: MoneyGram ,Western Union,L/C,TT

Shipping terms:By air, by sea,by express( DHL,Fedex,TNT,UPS,EMS)
