3 Way Multimode Hose Splitters Fiber Couplers

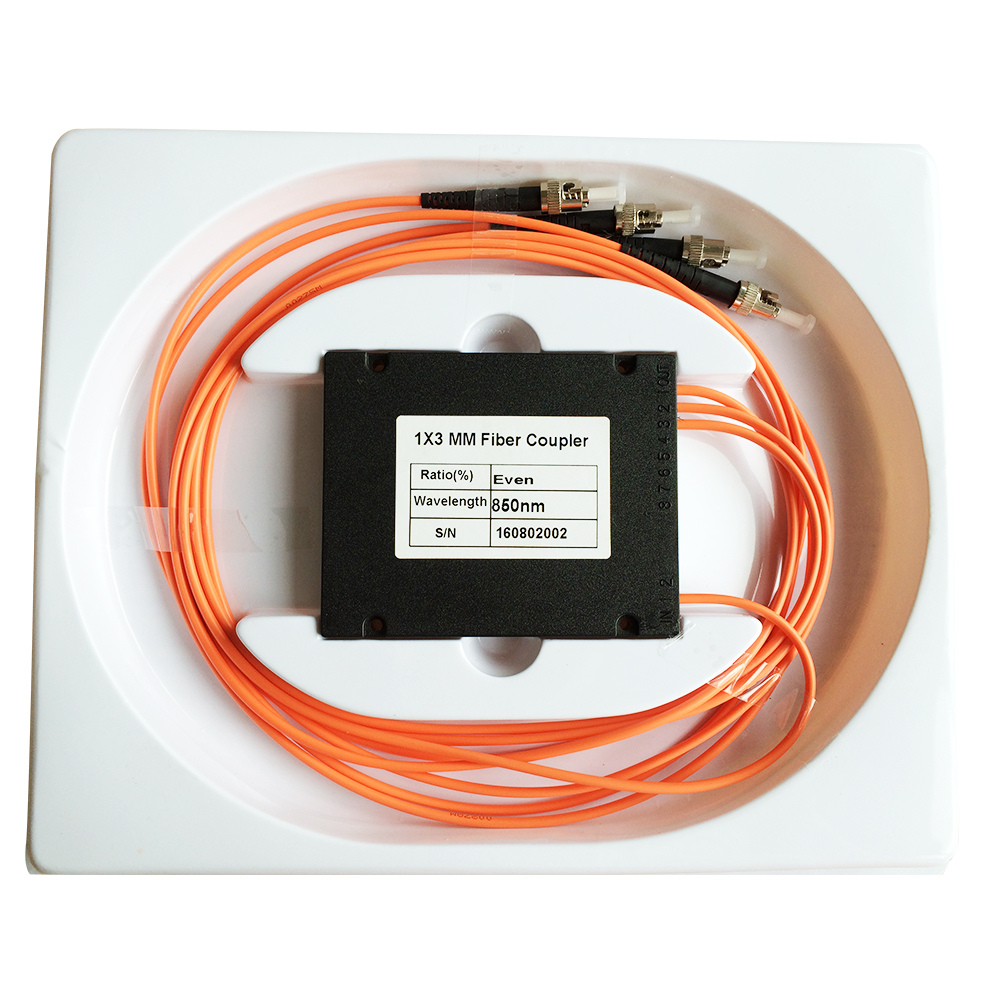

Supply 1×3 Multimode OM1/OM2 Plc Coupler Optical Fiber Coupler

Compact design, suitable for installation in outdoor fiber distribution box

The ABS PLC splitter supports the protection for inner componnents, it is suitable for reliable installation in your system design and manufacturing. Many of our OEM customers in the FTTH, FTTX, PON, GOPN prefer to use the ABS PLC splitter together with outdoor fiber distribution box.

ABS Box 拼图 钢管 拼图

Features:

Low insertion loss
Various coupling ratio
High return loss and excellent uniformity.
Low Polarization dependent loss
Environmental stable
Operation wavelength: 1260nm to 1650nm
Operating Temperature:-40℃ to 85℃

Application:

FTTx systems
Optical LAN, Metro, WAN networks
Passive optical networks
CATV networks
ABS box splitter_副本

Specification:

Table 1 – 1×N PLC optical splitter

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating wavelength (nm)

 1260~1650

Fiber type

G657A or other request

Insertion Loss (dB) (S/P)

 4.0/3.8

 7.3/7.0

 10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Uniformity (Max.,dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss(dB) (S/P)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization dependent loss (dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss

 (dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature stability(-40~85 ℃)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (℃)

-40~85

Storage temperature(℃)

-40~85

Device package size

 (mm)  (L×W×H)

40×4×4

40×4×4

40×4×4

50×4×4

50×7×4

60×12×4

Module Box Dimensions

 (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

Micro Module Size

 (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

N/A

Table 2 – 2×N PLC Optical Splitter

Parameter

2×2

2×4

2×8

2×16

2×32

Operating wavelength (nm)

 1260~1650

Fiber type

G657A or other request

Insertion Loss (dB)(S/P)

 4.2

 7.6

 11.0

14.5

17.5

Uniformity (Max.,dB)

0.8

1.5

1.5

2.0

2.5

Return loss(dB) (S/P)

50/55

50/55

50/55

50/55

50/55

Polarization dependent loss (dB)

0.2

0.2

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

Wavelength Dependent Loss

 (dB)

0.3

0.5

0.5

0.5

0.5

Temperature stability (-40~85 ℃)(dB)

0.5

0.5

0.5

0.5

0.5

Operating Temperature (℃)

-40~85

Storage temperature (℃)

-40~85

Device package size

 (mm)  (L×W×H)

40×4×4

50×4×4

50×4×4

50×7×4

60×7×4

Module Box Dimensions

 (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

Micro Module Size

 (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

Note:

1. Specification without fiber optic connectors;

2. Each connector will add loss 0.2dB.

Outside dimension

PLC device

PLC device 插图

PLC Micro Module 插图

PLC BOX 插图

BOX 插图

PLC – Planar Lightwave Circuit Splitter Advantages

Suitable for multiple operating wavelengths (1260nm – 1650nm); unstinted.
Equal splitter ratios for all branches.
Compact configuration; smaller size; small occupation space.
Good stability across all ratios.
High quality; low failure rate.

FBT – Fused Biconical Splitter Advantages

The product is well-known and is easy to produce, thus reducing cost of production.
Splitter ratios can be customized.
Can work on three different operating bands (850nm, 131 Onm, and 1550nm).
