Product Introduction

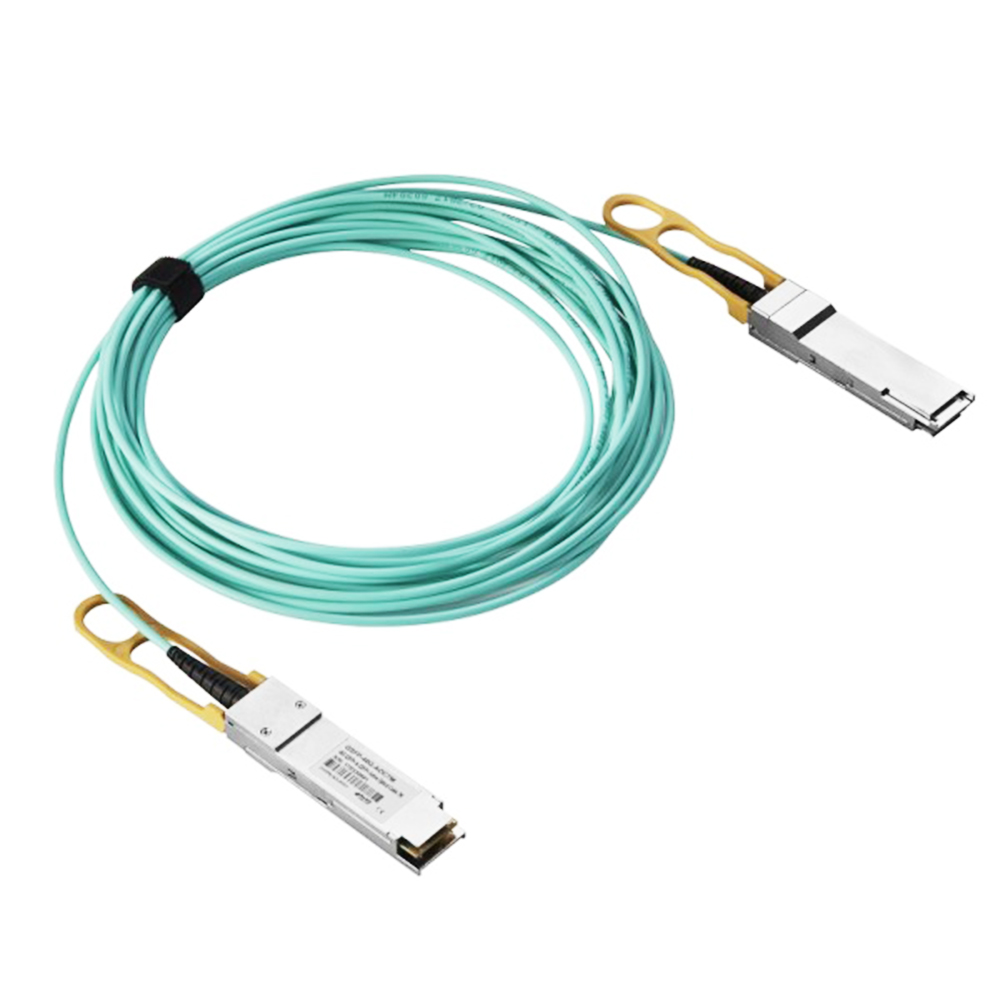

40GBASE QSFP+ to QSFP+ Active Optical Cable
QSFP+ to QSFP+ Connector active optical cable assemblies provide 4 fully duplex channels per cable supporting signal transmission rates up to 10 Gb/s & 14 Gb/s per channel. By its design, an AOC does not have any optical interfaces exposed eliminating the risk of contamination. The QSFP+ cable interface is based on the SFF-8436 industry standard, while also meeting the requirements of the 40GBASE-SR4 Ethernet and Infiniband SDR, DDR, QDR & FDR standards. The QSFP+ cables feature the use of non-conductive, plenum rated, helix based 8 multi-mode fiber optical cables that allow for cable routing and bending in any direction.
This product is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. The AOC offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each capable of 10Gbps operation. Consequently, an aggregate data rate of 40Gbps over 100 meters transmission can be achieved by this product, to support the ultra-fast computing data exchange.
Features:
- 40GBase QSFP+ to QSFP+ Connectors
- OM3 MMF Cable
- Full duplex 4 channel 850nm parallel active optical cable
- Transmission data rate up to 10.3Gbit/s per channel
- SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
- Management Interface and digital diagnostic monitoring(DDM) through I2C
- Support Rx output pre-emphasis
- 4ch 850nm VCSEL array
- 4ch PIN photo detector array
- Helix type multi-mode optical fibre cable of up to 100m
- OFNP (Optical Fibre Non-Conductive Plenum) rated cable
- Differential AC-coupled high speed data interface
- Low power consumption of typical 0.8W per end
- Housing isolated from connector ground
- Easy to use release mechanism
- Operating case temperature 0ºC to +70ºC
- 3.3V power supply voltage
- RoHS 6 compliant
- Laser Class 1
Applications:
- Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
- Multi-channel 10Gb Ethernet transmission up to 4 channels
- Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels
- QSFP+ cables with MT connectors for plugging into existing cable runs or patch pannels
- Creating a breakout cable with four Duplex LC connectors for port expander applications
- SDR / DDR / QDR
Order Information:
|
Part Number |
Description |
Data Rate |
Length |
Cable Type |
BER |
Temp. Range(°C ) |
|
QSFP-AOC-5M |
40GBASE QSFP+ AOC Cable, 5-Meter (OM3 MMF) |
40Gbps |
5 m |
OM3 MMF |
< 10-15 |
0~70 |
|
QSFP-AOC-15M |
40GBASE QSFP+ AOC Cable , 15-Meter (OM3 MMF) |
40Gbps |
15 m |
OM3 MMF |
< 10-15 |
0~70 |
|
QSFP-4SFP-AOC-5M |
QSFP+(40Gb/s) to 4x SFP+(10Gb/s) AOC Cable, 5-Meter |
40Gbps |
5 m |
OM3 MMF |
< 10-15 |
0~70 |
|
QSFP-4SFP-AOC-10M |
QSFP+(40Gb/s) to 4x SFP+(10Gb/s) AOC Cable, 10-Meter |
40Gbps |
10 m |
OM3 MMF |
< 10-15 |
0~70 |
|
QSFP-8LC-AOC-5M |
40GBASE QSFP+ AOC cable, 5-Meter, QSFP+ to LC Connetor (OM3 MMF) |
40Gbps |
5 m |
OM3 MMF |
< 10-15 |
0~70 |
|
QSFP-8LC-AOC-10M |
40GBASE QSFP+ AOC cable, 10Meter,QSFP+ to LC Connetor (OM3 MMF) |
40Gbps |
10 m |
OM3 MMF |
< 10-15 |
0~70 |
|
FDR-AOC-10M |
Molex 56Gbps QSFP+ Active Optical Cable Singlemode PSM4, 10-Meter |
56Gbps |
10 m |
SMF |
< 10-15 |
0~70 |
Payment and Shipping Terms
Estimated Lead Times: 1-2 business days (or possibly more depending on quantity).
Payment terms: MoneyGram ,Western Union,L/C,TT
Shipping terms:By air, by sea,by express( DHL,Fedex,TNT,UPS,EMS)
