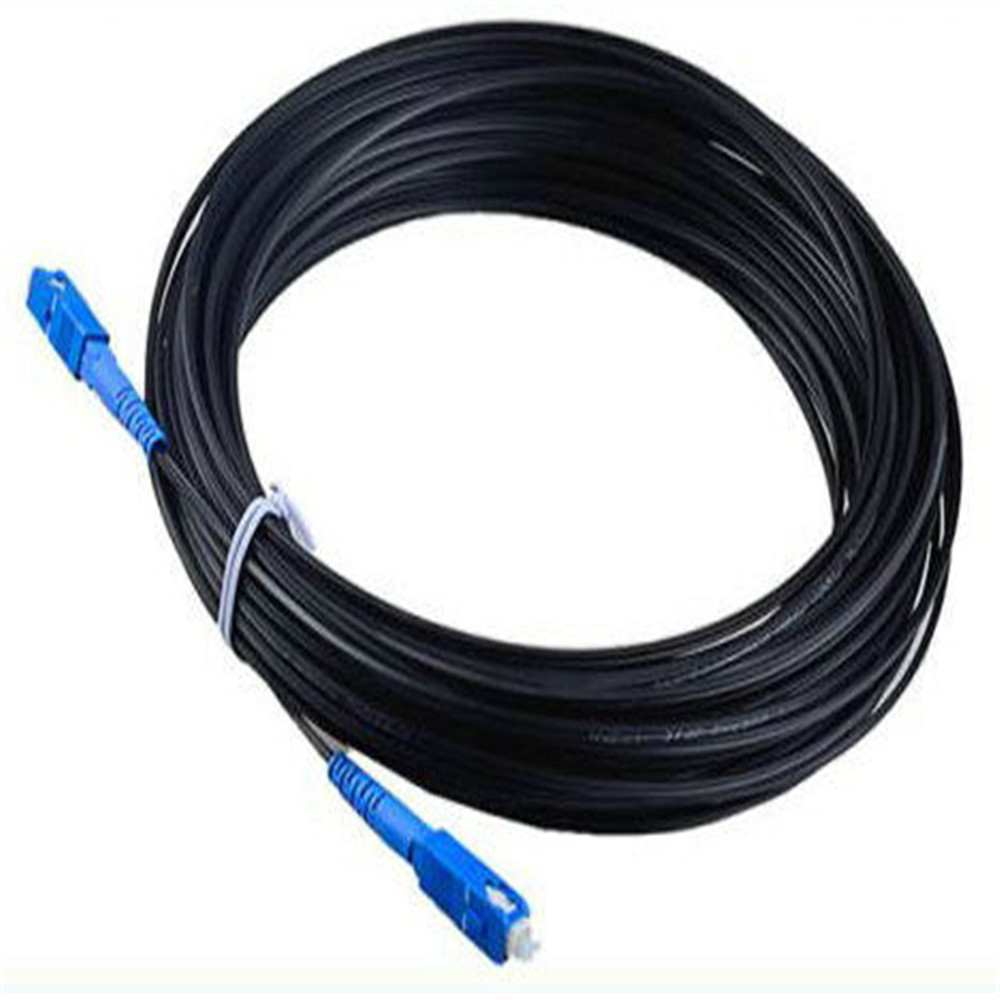

Black Jacket 1 Core FTTH Fiber Optic Cable Optical Fiber Patch Cord For CATV

Black Jacket 1 Core FTTH Fiber Optic Cable Optical Fiber Patch Cord with SCUPC to SCUPC Connector Singlemode black color with FRP Strength Member

Product Description for FTTH Fiber Patch Cord with Simplex SC Connectors

FTTH drop patch cords have been widely applied in Fiber Optic  CATV, FTTH, FTTB, FTTP solutions; Geographic area Networks (LANs) and Wide Area Networks (WANs); Fiber Optic telecommunication systems; Transmission Mode (ATM) and Fiber Optic Central source.

10G-Link Fiber can supply FTTH drop cable patch cords which are made from standard FTTH fiber optic cables. The FTTH drop cable patch cords are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters.

Product Specification (Parameter) of FTTH Singlemode simplex 1 Core Fiber Patch Cable SCUPC/SCUPC Connectors

Connector Type SC Polish Type UPC to UPC
Fiber Mode G657A1,G657A2,G652D Wavelength 850/1300nm
Fiber Count Simplex Fiber Grade G.651
Insertion Loss ≤0.3dB Return Loss ≥55dB
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Minimum Bend Radius 30mm Cable Diameter 2.0*3.0mm
Cable Jacket PVC/LSZH/OFNP Jacket Color Black and white color
Polarity A(Tx) to B(Rx) Operating Temperature -40~75°C



FTTH Patch Cord Main Info
End Face Type: PC/APC/UPC/Plat Polish
Connector Type: FC/SC/LC/ST/ MTRJ/ DIN/E2000
Operating Wavelength: 850nm/1310nm/1550nm
Length: 0.5m/1m/2m/3m/5m/7m/12m or customer specified
Insertion loss: ≤0.3dB
Return loss: ≥55dB
Interchangeability: ≤0.2dB
Repeatability: ≤0.2dB
Insert-pull test: 100times, 0.3dB
Fiber Diameters: 9/125µm SM; 62.5/125/µm, 50/125µm MM
Fiber Type: SM, MM, OM1, OM2, OM3, OM4, OM5 duplex, simplex
Material Feature: PVC/LSZH/OFNR/OFNP/Plenum
Storage Temperature: -40~+85°C
Operating Temperature: -25~+85°C

FTTH Fiber Optic Patch Cables Application

FTTH Patch cables are used for connections to CATV (Cable Television), telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home), LAN (Local Area Network),FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment, Defense combat readiness, etc.

(1) FTTN :Fiber To The Node
(2) FTTZ :Fiber To The Zone
(3) FTTCab:Fiber To The Cabinet
(4) FTTC :Fiber To The Curb
(5) FTTB: Fiber To The Building
(6) FTTP: Fiber To The Premise
(7) FTTH: Fiber To The Home
(8) FTTO: Fiber To The Office

Application in FTTx

Product Features of FTTH Fiber Optic Patch Cords
·Low insertion loss ≤0.3dB;
·High return loss,Singlemode UPC≥55dB,APC≥65dB
·Good repeatability;
·Good interchange;
·Excellent environmental adaptability;
·Precise connector
·Excellent mechanical capability
·Fiber optic connector accord with ISO9001,ROHS,CE
Connector options include: Epoxy
—— SC/UPC —— SC/UPC Temperature coefficient 120tg
Performance   Curing method Outgassed
Insertion Loss: <0.3dB typical(UPC) Residual epoxy Not specified
Return Loss: >55dB typical(UPC) Configuration Control
             >65dB typical(APC) Data tracking IL and RL data printed on each cable
Geometry   Cable Type options include:
Radius of curvature     7-25mm Singlemode(9/125) Options available
Apex offset             0-50um Simplex and Duplex cables,4core,8core,12core available
Radial fiber height     -50 to +50nm —— Riser —— Plenum
Angular offset          <0.3degrees —— Low smoke/zero halogen —— Bend-insensitive
Fiber roughness         0-25nm Cable outer jacket diameter options include:
Ferrule roughness       0-50um —— 900um —— 1.6*2.0mm
Fiber core 0n㎡ —— 2.0*3.0mm —— 3.0*5.0mm

Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9 and so on)
Qulity assurance
Every FTTH patch cord  will be tested to be of good quality.Meanwhile free samples can be supplied for your test.The guarantee period is 10 years.So if there are problems about the goods,the replacement will be available.
10Glink single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
10Glink also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
FTTH Drop cable series
Payment and Shipping Terms
Payment terms: MoneyGram ,Western Union,L/C,TT
Shipping terms:By air, by sea,by express( DHL,Fedex,TNT,UPS,EMS)

Payment and shipping 图片_副本
