China High-quality FTTH Drop Cable GJXFH Indoor G657A2/G657A1 FTTH Cable 1 Core

Short Description:

Cable Type: FTTH Drop Cable

Fiber Count: 1-6Fiber

Fiber Type: SM G657A

Outer Jacket:LSZH/PVC

Jacket Color:(Black/White)

Cable Diameter:

Outdoor(2.0±0.2)×(5.0±0.2)mm

Indoor(2.0±0.2)×(3.0±0.2)mm

Cable Weight:20kg/km

Tensile Strength (long/short term):100/200N

Crush Load (long/short term):300/1000 (N/100mm)

Bending Radius (long/short term):10D/20D (mm)


Product Detail

Product Tags

Outdoor 1-6 Core FTTH Fiber Drop Cable

Description:

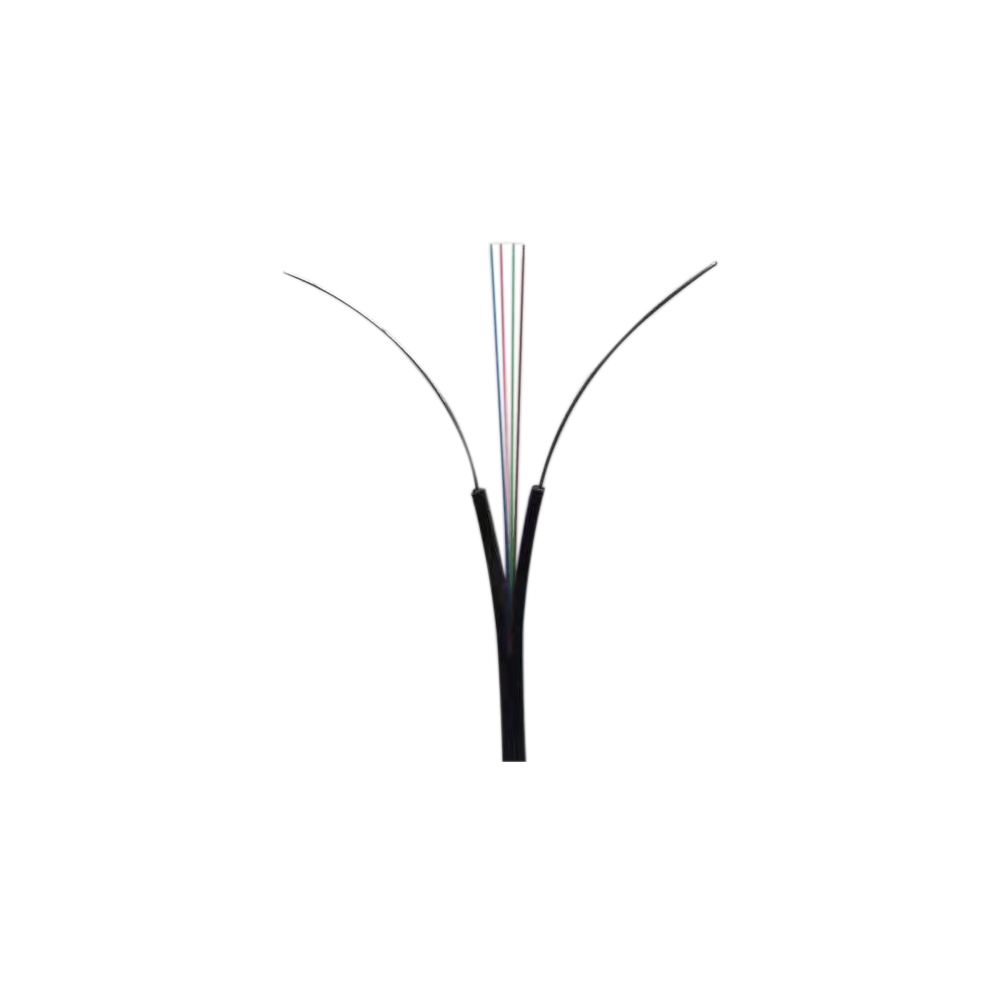

Bow Type Drop Cable Structure: optical fiber(s) is placed between two steel wire strength members, with self-supporting steel wire strength component, low smoke, non-halogen flame retardant outer sheath material.we supply 1 -6 core FTTH fiber optic cable.

FTTH Outdoor Cable

1 2 4 Core FTTH Indoor Outdoor Drop Cable G657A, Flat FRP Figure 8 Drop



FTTH Indoor Cable

室内非自承式蝶形皮线光缆

Features:
1. GJYXCH Bow Type Drop Cable adopts the slight bending resistant fiber B6, ensure data transmission.
2. Small size, light weight, simple structure, easy to strip for its special groove design and no need any tool, easy to install.
3. Two parallel phosphated steel wires as strength member have excellent crush and tensile resistance.
4. Self-supporting steel wire strength component withstand most part of tension.
5. Low smoke, non-halogen flame retardant outer sheath material.
Cable Type FTTH Drop Cable Fiber Count 1-6 Fiber
Construction Self-supporting Fiber Type Singlemode G.657A
Outer Jacket Material LSZH (Black/White) Strength Member Material Metal
Cable Diameter (2.0±0.2)×(5.0±0.2)mm Cable Weight 20kg/km
Tensile Strength (long/short term) 100/200N Crush Load (long/short term) 300/1000 (N/100mm)
Bending Radius (long/short term) 10D/20D (mm) Operating/Storage Temperature -40 to +60°C

Performance Indicators:
1. GJYXCH FTTH Fiber Optical Cable is applicable as drop cable access to FTTH, FTTO, FTTB networks, etc.
2. Laying Way: Overhead, Pipeline.
3. Operating Temperature: -20~+ 50℃.

Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.

3. Standard Reel Length: 2000m/reel: other lengths available on request.

Cable Type Cable Diamter (mm) Weight (kg/km) Tensile strength(N) Crush Resistance(N/100mm) Minimum bending radius (mm)
Short-term Long-term Short-term Long-term Static Dynamic
GJXFH-1 2.0*5.0 21 60 30 1000 300 15 30
GJXFH-2 2.0*5.0 21 60 30 1000 300 15 30
GJXFH-4 2.0*5.6 21.5 60 30 1000 300 15 30
GJXH-1 2.0*5.0 21 60 30 1000 300 15 30
GJXH-2 2.0*5.0 21 60 30 1000 300 15 30
GJXH-4 2.0*5.6 21.5 60 30 1000 300 15 30

Indoor Cable

Fiber Counts Cable Diameter Weight (kg) Tensile Strength Crush Resistance Bending Radius
(mm)  Long/Short Long/Short Term Static/Dynamic
Term(N) (N/100mm) (mm)
GJXFH-1 2.0*3.0 8 60/30 1000/300 15/30
GJXFH-2 2.0*3.0 28.5 60/30 1000/300 15/30
GJXFH-4 2.0*4.0 10 60/30 1000/300 15/30
GJXH-1 2.0*3.0 9 60/30 1000/300 15/30
GJXH-2 2.0*3.0 9.5 60/30 1000/300 15/30
GJXH-4 2.0*4.0 10 60/30 1000/300 15/30





FTTH Drop cable series
