Compatible Module Transceptor SFP+ 10GBASE-LRM Fibra Optica – LC Duplex, 10 Gigabit Ethernet, Multimode, 220m, 1310nm

Short Description:

Type:SFP+
Model:TGL-SFP+-LRM
Compatibility:Multi-Vendor MSA Compatible
Wavelength: 1310nm.
Media Type: Multimode
Max. Distance: 220m
Connector:LC
Data Rate: 10Gbps
Temperature:Standard 0°-70°C
Product Origin:China
Shipping Port:ShenZhen
Lead Time:2-3days


Product Detail

Product Tags

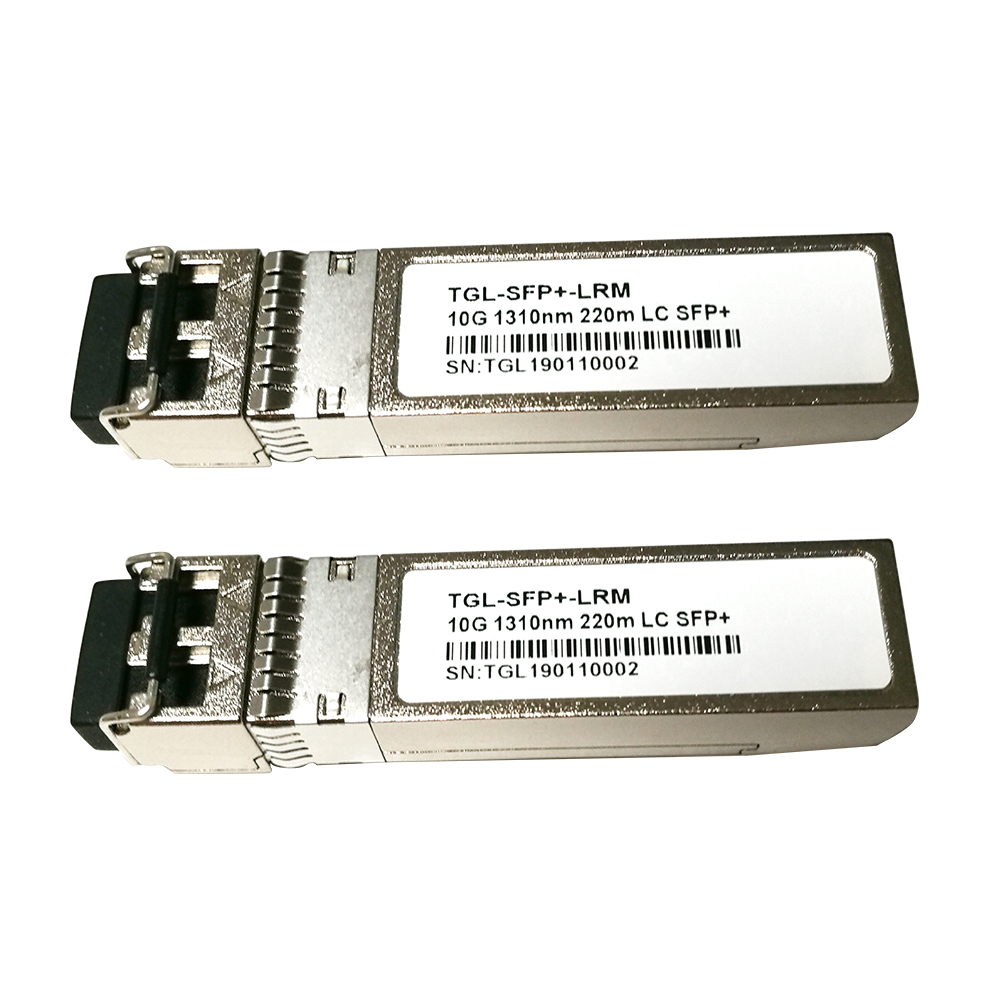

TGL-SFP+-LRM  10Gbps 220m SFP+ Transceiver

Features

* Supports 9.95 to 10.3Gbps bit rates
* Transmission distance up to 220m (OM1 fiber)
* Hot Pluggable SFP+ footprint
* 1310nm FP transmitter, PIN photo-detector
* Digital Status monitoring Interface
* Duplex LC connector
* RoHS compliant and Lead Free
* Metal enclosure for lower EMI
* Single 3.3V power supply
* Power dissipation < 1W
* Operating case temperature: 0 to 70℃
* Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431 , SFF-8432 and SFF-8472

Applications

 * 10GBASE-LRM 10G Ethernet

 * Legacy FDDI multimode links

Product description

SFP+ LRM is an optical transceiver module for transmission at 1310nm over legacy multimode fiber. Supporting 10GBASE-LRM Ethernet standard make it ideally suited for 10G datacom. Its very low power consumption and its excellent EMI performance allow system design with high port density. The small form factor integrates a 1310nm Fabry-Perot (FP) laser in an LC package and a linear multimode PIN receiver.

This module is lead free, RoHS compliant and is designed and tested in accordance with industry safety standards.This SFP+ transceiver is a linear-interface transceiver that enables, in conjunction with an Electronic Dispersion Compensation (EDC) on the host board, an IEEE802.3aq 10GBASE-LRM compliant link. The host board EDC provides correction for the severe modal dispersion that may occur during propagation through multimode fiber links, including legacy installed FDDI multimode fiber (see IEEE802.3aq for detailed information regarding fiber coverage).

LRM 插图1

Unlike the XFP MSA transceiver requirements, the SFP+ transceiver does not contain internal retiming circuitry, and thus some of the Transmitter Optical Characteristics stated in this data sheet require that the Host Board is compliant to the SFP+ MSA specifications. See Chapter 3 in Reference [1] for further details.

Pin definition

The SFP+ modules are hot-pluggable. Hot pluggable refers to plugging in or unplugging a module while the host board is powered.  The SFP+ host connector is a 0.8 mm pitch 20 position right angle improved connector specified by SFF-8083, or stacked connector with equivalent with equivalent electrical performance.

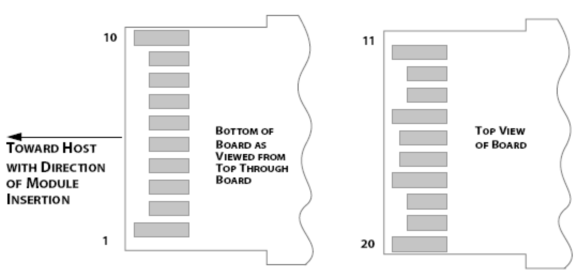

Host PCB contact assignment is shown in Figure 2 and contact definitions are given in Table 2.

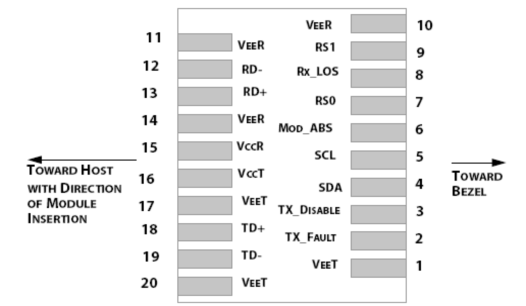

SFP+ module contacts mates with the host in the order of ground, power, followed by signal as illustrated by Figure 3 and the contact sequence order listed in Table 2.

LRM 插图2 LRM 插图3

General Specifications

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Bit Rate

BR



10.3125



Gb/sec

1

Bit Error Ratio

BER





10-12



2

Maximum Supported Distances

Fiber Type

1310nm OFL Bandwidth













62.5μm

“FDDI” 160MHz/km

Lmax





220

m

3

OM1

200MHz/km





220

50μm

400MHz/km

Lmax





100

m

3

OM2 500MHz/km





220

OM3 2000MHz/km





220

Notes:

1. 10GBASE-LRM
2. Tested with a 231 – 1 PRBS
3. Operating range as defined by IEEE standards. Longer reach possible depending upon link implementation.

LRM 插图4

ESD

This transceiver is specified as ESD threshold 2kV for all electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM).  However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

LASER SAFTY

This is a Class 1 Laser Product according to IEC 60825-1:1993:+A1:1997+A2:2001.  This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (July 26, 2001)

Ordering information

Part Number

Product Description

TGL-SFP+-LRM 1310nm, 10.3125Gpbs, Multi Mode  220m,   0ºC ~ +70ºC
