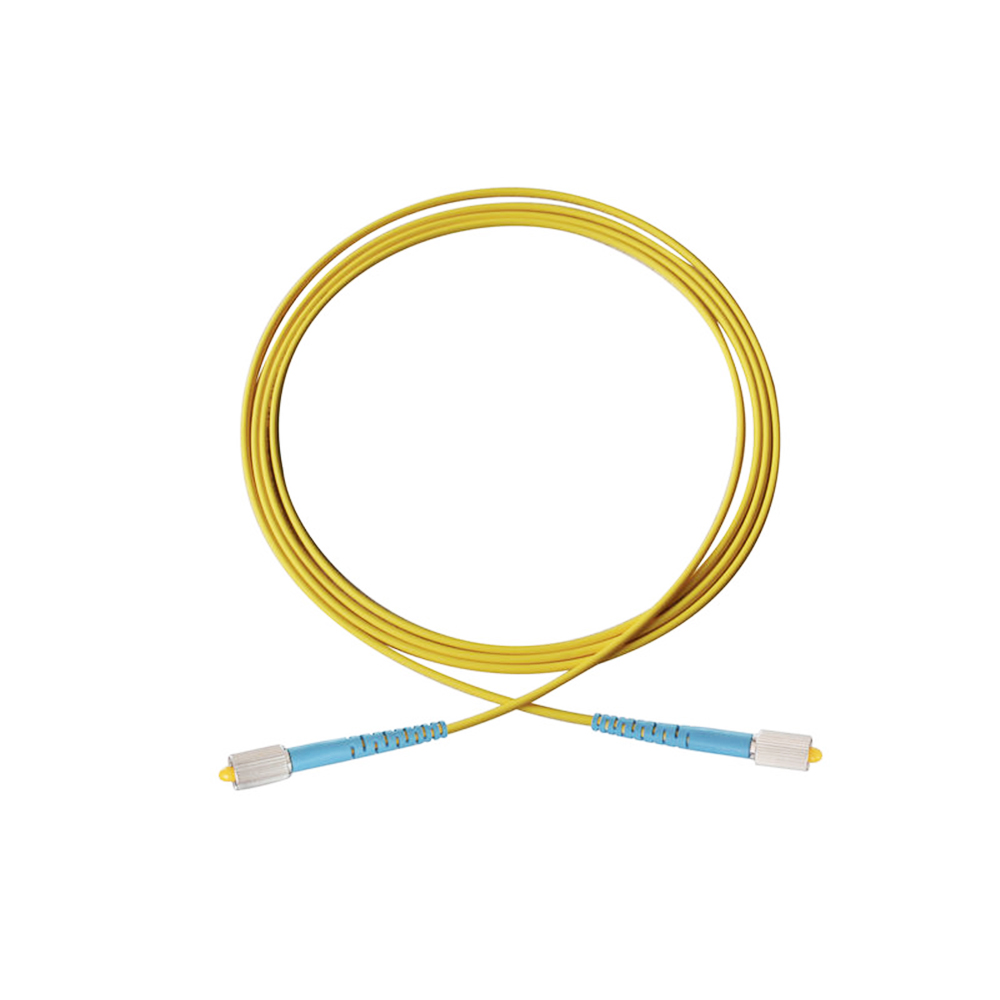

D4/PC Single Mode Simplex Fiber Optic Patch Cable

Product Introduction

The D4 connector is one of the older generation connectors which is keyed, and spring loaded and has a 2mm diameter ferrule. Connector body is nickel plated brass for enhanced durability.

The D4 connector type D4 patchcords are offered for MM or SM applications with PC polishing method. Two boot dimension allows to use different cable or fiber diameters.

Features:

·All parts are ROHS compliant
·Low insertion loss, ensure highest network connection performance
·100% tested on optical performance (Insertion Loss & Return Loss)
·End-face geometry requirement comply to Telcordia GR-326-CORE
·Available in Singlemode(OS1-9/125), Multimode(OM1-62.5/125, OM2-50/125, OM3-50/125, OM4-50/125) ,OM5 fibers
·Fiber diameter(mm): Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.4, Φ2.8, Φ3.0, Φ4.0
·Cable material: OFNR, OFNP, LSZH
·Customer specified length
·Corning, YOFC, Draka, OFS fiber available for selection

Application:

Our premium low loss range of patch cords are suitable for telecom, datacom, data center and some critical applications. The patch cords provide flexible interconnection to active equipment, passive optical devices and cross-connects.

  1. Gigabit Ethernet
  2. Computer fiber networks
  3. Fiber test equipment
  4. Communication rooms
  5. Fiber Optic Communication System
  6. Optical fiber connected and transmitted equipment
  7. Defense combat readiness
  8. Active device termination
  9. Telecommunication networks
  10. Video and Multimedia
  11. Premise installations
  12. LAN(Local area networks)
  13. FTTH  (Fiber to The Home) and FTTX applications
  14. CATV (Cable Television)
  15. FOS (fiber optic sensor)

光纤跳线应用插图

Product Specification (Parameter) of D4 Fiber Patch Cable

Parameter

Unit

Standard & Requirement

PC(SM)

UPC(SM)

APC(SM)

PC(MM)

Insertion Loss (Typical)

dB

≤0.3

≤0.2

≤0.2

≤0.3

Return Loss

dB

≥45

≥50

≥60

≥35

Mechanical Endurance (500T)

dB

≤0.2

Exchangeability

dB

≤0.2

Durability

Time

>1000

Vibration

dB

≤0.2

Operating Temperature

﹣40 ~﹢75

Storage Temperature

﹣45 ~﹢85

Cable Diameter

mm

Ф3.0, Ф2.0, Ф0.9

D4 Patch Cord Drawing:

D4 接头 图纸

  • Performance
  • • Each Cable is custom made in the China by Skilled Technicians (no assembly lines)
  • • The cable is made with Genuine Corning Infinicore 300 glass for superior performance.
  • • Insertion loss testing performed on every assembly. Our strict standards mandate a maximum allowable loss if 0.02 dB (or less)
  • • Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants or other imperfections.
  • • All cables serialized and test results are recorded
  • • Guaranteed performance specifications
  • • The cable is duplex 2.0mm cable jacket which is the most popular
  • • OFNP Rated for Plenum or Riser use

Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)

Patch cord 车间拼图
