Ethetnet switch Converter 4 port 10/100/1000Base-Tx to 1000Base-Fx

5-port unmanaged Gigabyte Ethernet switch  With 4×10/100/1000Base-T(X) ports and 1×1000Base-FX

4 ×10/100/1000BaseT(X)  1× 1000BaseFX
Support auto-negotiation and auto-MDI/MDI-X
No fan, Metal shell, Internal power, 100~240V AC
All port anti-lighting (6KV)
Working temperature:  -20℃~60℃
DIP switch provide three-mode configuration

Dimension

Dimensions 插图

The fiber switches are unmanageable,when convert transmission,all ports share the same data. They can extend the network transmission from 100m to 120km and can realize the interconnection between motherboard server, Repeaters, hubs, switches, terminal.Plug and play design makes easy installation, no on-site adjustment. Operation status can be monitored through a set of Diagnostic LED.

Features

* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
* Hot Plug-gable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Stable performance more than 50 thousands hours with fault-free.
* In conformity with safety code of FCC, CE and RoHS.

Specifications

Optical Interface Connector 1×9 SC/FC/ST
Data Rate 100Mbps, 1000Mbps
Duplex Mode Full duplex
Fiber MM 50/125um,62.5/125umSM 9/125um
Distance 100Mbps:MM 2km,SM 25/40/60/80/100/120km1000Mbps:MM 550m/2km,SM 20/40/60/80km
Wavelength MM 850nm,1310nmSM 1310nm,1550nmWDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side)WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side)
UTP Interface Connector RJ45
Data Rate 10/100Mbps, 10/100/1000Mbps
Duplex Mode Half/full duplex
Cable Cat5,Cat6
Power Input Adapter Type DC5V
Power Built-in Type AC100~240V
Power Consumption <3W
Temperature 0~50℃ Operating; -40~70℃ Storage
Humidity 5~95%(no condensing)
MTBF ≥10.0000h
Certification CE,FCC,RoHS

Application

 * Extend your Ethernet connection up to 0~120km away using fiber optics
 * Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbone
 * Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
 * Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

System Design

1.For Networking

收发器插图

 2.For CCTV Surveillance Security

收发器插图 02

Order Information

Part Number Description
TGL12SM-20 10/100M Dual Fiber, 1Fiber and 2RJ45 ports
TGL12SM-20A/B 10/100M Single Fiber, 1Fiber and 2RJ45 ports
TGL14SM-20 10/100M Dual Fiber, 1Fiber and 4RJ45 ports
TGL14SM-20A/B 10/100M Single Fiber, 1Fiber and 4RJ45 ports
TGL23SM-20 10/100M Dual Fiber, 2Fiber and 3RJ45 ports
TGL23SM-20A/B 10/100M Single Fiber, 2Fiber and 3RJ45 ports
TGL82SM-20 10/100M Dual Fiber, 8Fiber and 2RJ45 ports
TGL82SM-20A/B 10/100M Single Fiber, 8Fiber and 2RJ45 ports
TGL12GS-20 10/100/1000M Dual Fiber, 1Fiber and 2RJ45 ports
TGL12GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 2RJ45 ports
TGL14GS-20 10/100/1000M Dual Fiber, 1Fiber and 4RJ45 ports
TGL14GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 4RJ45 ports
TGL18GS-20 10/100/1000M Dual Fiber, 1Fiber and 8RJ45 ports
TGL18GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 8RJ45 ports
TGL22GS-20 10/100/1000M Dual Fiber, 2Fiber and 2RJ45 ports
TGL22GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 2RJ45 ports
TGL24GS-20 10/100/1000M Dual Fiber, 2Fiber and 4RJ45 ports
TGL24GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 4RJ45 ports
TGL28GS-20 10/100/1000M Dual Fiber, 2Fiber and 8RJ45 ports
TGL28GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 8RJ45 ports

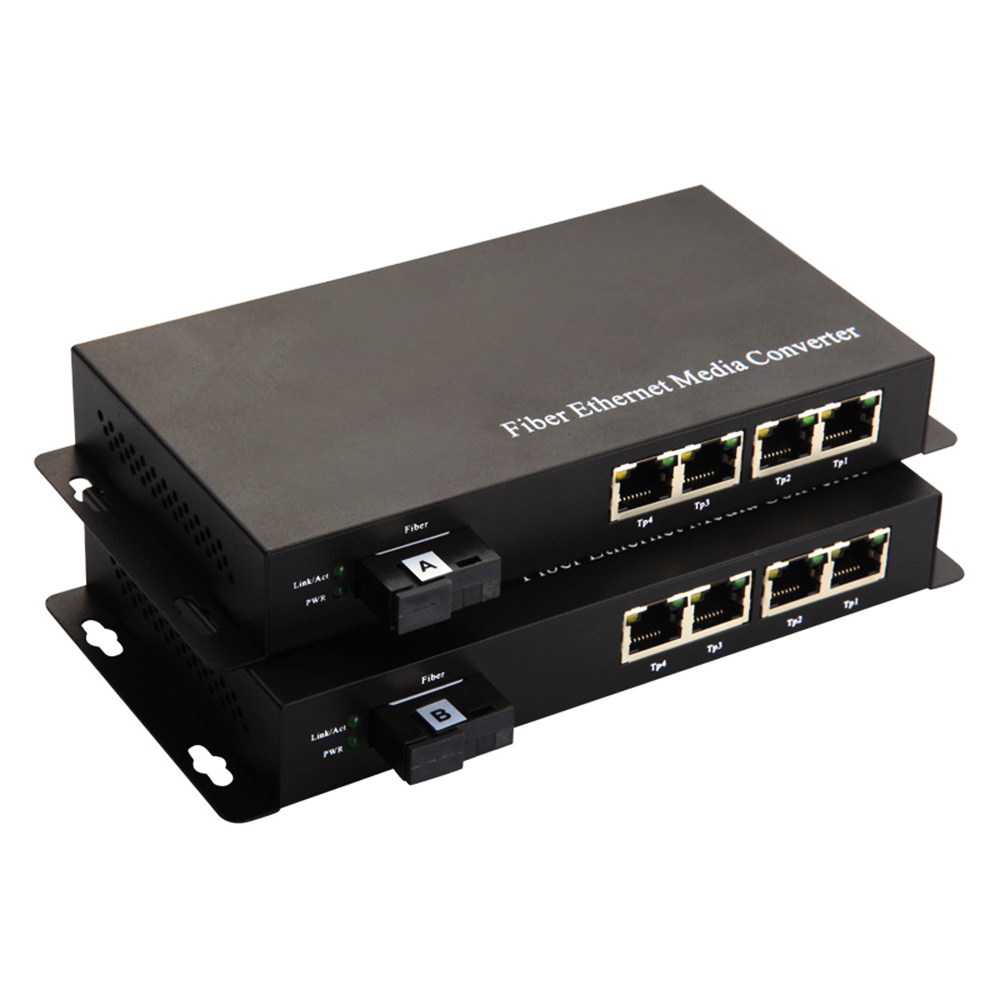

Pictures : 10/100/1000M Single Fiber, 1Fiber and 4RJ45 ports

产品插图

Package list
•   Ethernet Switch
•   AC Power Cable
•   Install accessories
•   User manual
•   Warranty card
