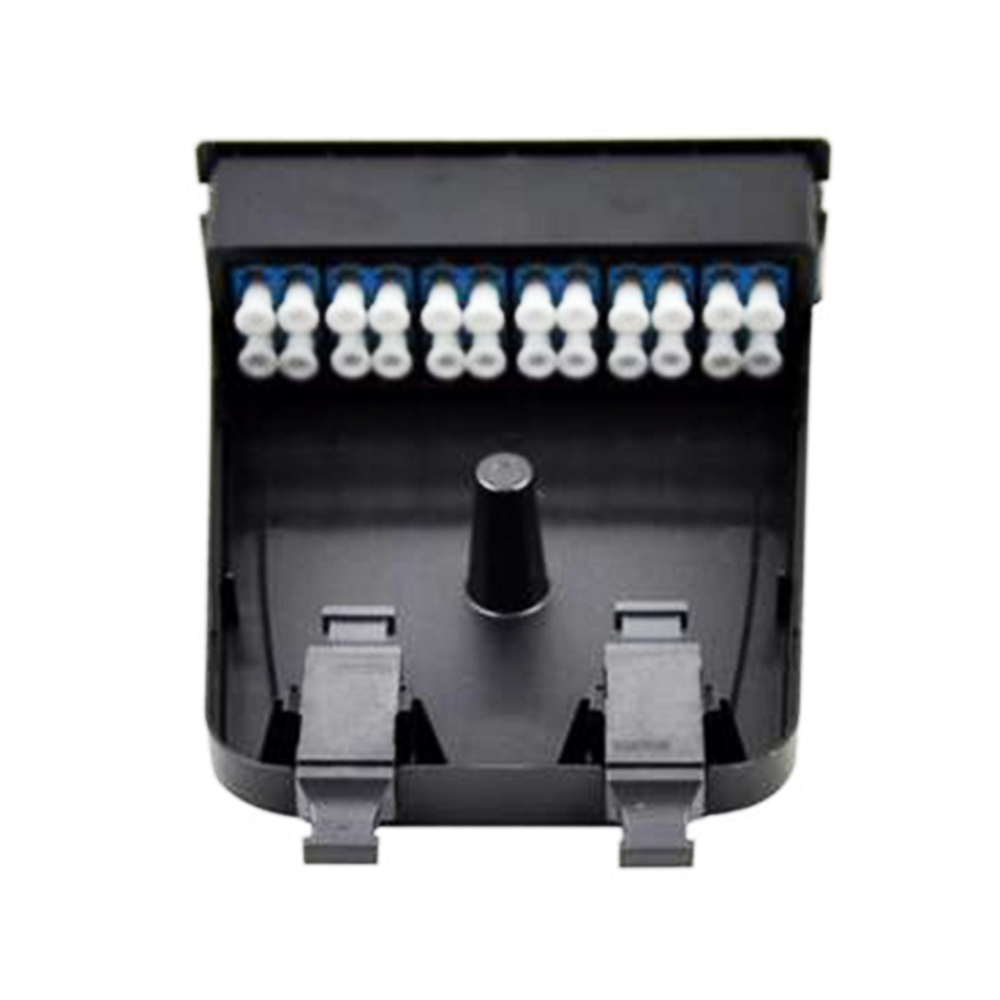

Fiber optic MPO 12ports 24ports Cassette

MPO/MTP Cassette modules provide the interface between the MPO/MTP on the trunk and the LC duplex and jumpers and that will then connect directly into the electronics.
Modular system allows for rapid deployment of high density data center infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. Cassettes can be mounted in 1U or 4U 19” multislot chassis.

Features
Cable array in the cassette can be AB/BA
Cable array in the cassette can be AB/AB
MPO trunk lines connecting port is fixed on the back of cassette
Can be installed in various Modules Type ODF
Easy to be installed , moved and updated

Applications

1.High density cable wiring system
2.Truck network system
3.High integrated equipment and devices
4.Data Center and SAN System

[(2020ZTF8L_FH(9H4U{HCR

Fiber Count 12 Fiber Mode OS2 9/125μm
Front Connector Type 12 LC UPC Duplex Rear Connector Type 1x MPO APC Male (pinned)
MTP Adapter Key up to Key down Dimensions (HxWxD) 1.38”x4.29”x4.64” (35x109x118mm)
Insertion Loss MPO/MTP≤0.35dB, LC≤0.2dB Return Loss MPO/MTP≥60dB, LC≥50dB
Operating Temperature 0°C to 70°C (32°F to 158°F) Storage and Shipping Temperature -40°C to +75°C (-40°F to 167°F)
RoHS Compliancy Status Compliant Application Matching for Type AF Cassette
