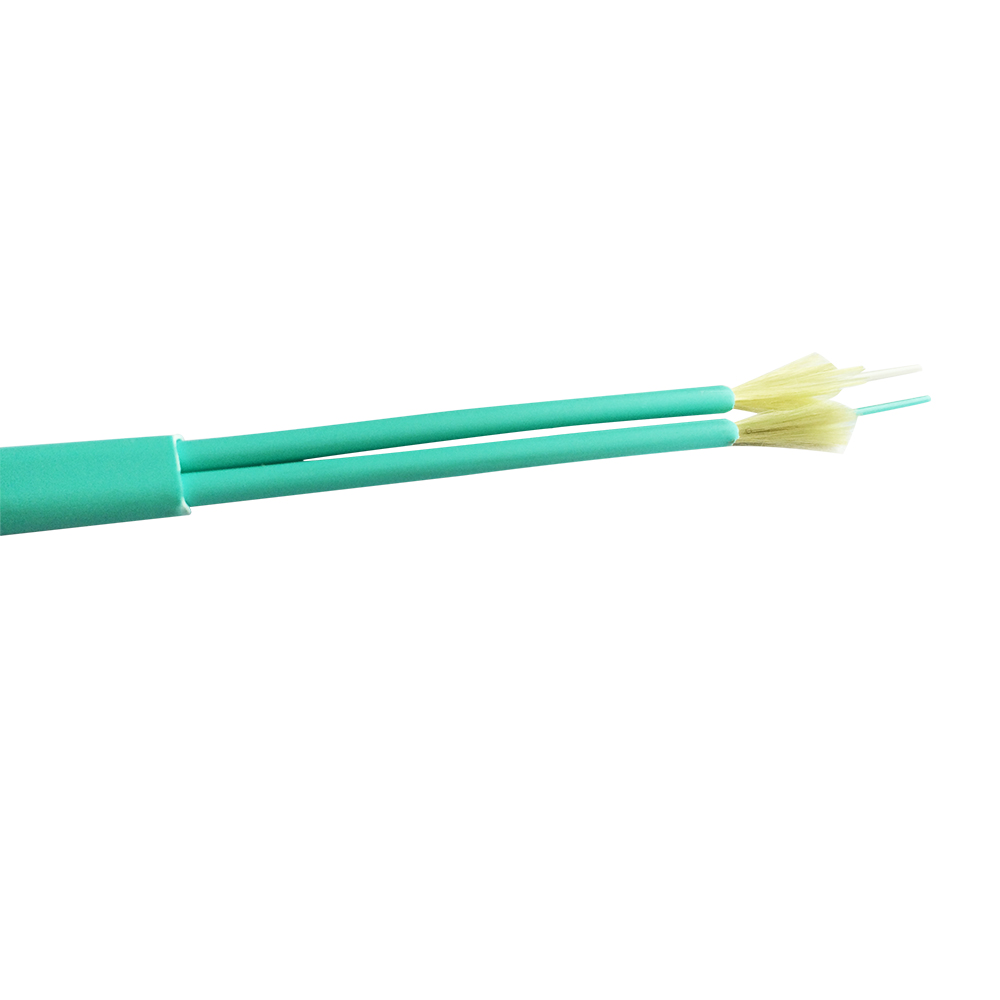

Flat Twin Fiber Optic Cable丨Indoor Flat Duplex Cable

The flat twin fiber optic cable is used for indoor distribution and as pigtail communication equipment. It is suitable for communication equipment that is served, it is easy to install and simple to operate. Flat Twin Fiber Optic Cable with tight buffer (900um or 600um) has two single-fibers as basic unit flat twin configuration. The key features of these Flat Twin Duplex Optical Cables include their excellent stripping performance of tight buffer fiber and they are suited to SM fiber and MM fiber.

Product Name: Flat Twin Duplex Military Tactical Indoor Cable

Cable Structure: Flat Twin(GJFJV)

G[SIPHF84W8YUN3E38[0TYK

插图02

They are available in dozens of configurations such as:

• Indoor plenum fiber optic cable
• Indoor/outdoor riser singlemode cable
• Direct burial cable
• Self-supporting aerial cable
• 2-fiber patch cord cables
• 6-144 strand singlemode cables

Application:

☆.Adopted to indoor distribution.
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Suitable for floor connection.

Characteristics:

☆.Hight strength kevlar yarn member.
☆.More tight buffered design.
☆.Round construction.
☆.Saft. Easy to strip.

插图02 插图01

Technical Parameters:

Out sheath
Diameter
Inner sheath
Diameter
Weight Minimum allowable Tensile Strength
(N)
minimum allowable Crush Load
(N/100mm)
Minimum Bending Radius
(MM)
Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
3.0×5.0 2.0 34.00 1000 300 1000 500 20D 10D -20+60
4.0×7.0 2.8 42.00 1000 300 1000 500 20D 10D -20+60
