Fullaxs fiber optic outdoor waterproof patch cord

Product Introduction

FULLAXS Fiber to the Antenna Rugged Interconnect

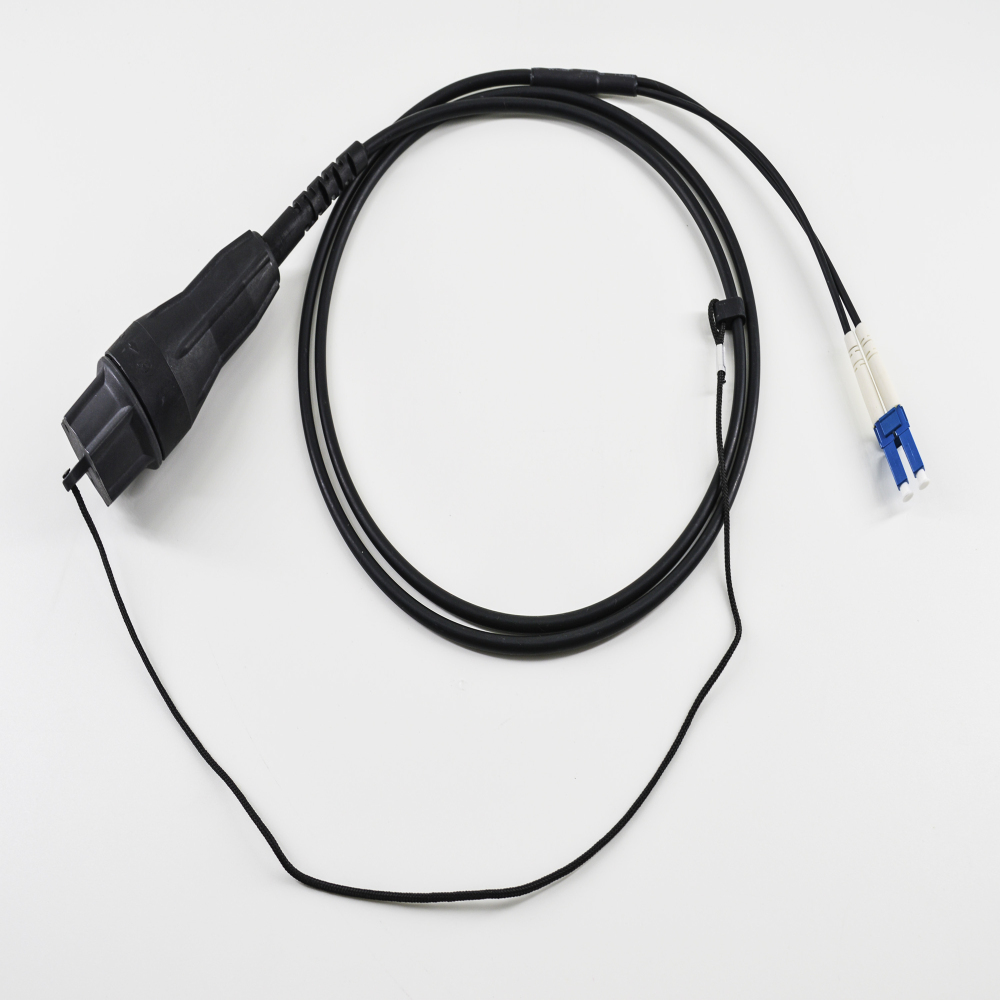

Fullaxs fiber optic outdoor waterproof patch cord/Full-axs patchcord/Fullaxs connector/IP67 waterproof connector To meet the needs of the next generation WiMax and long term evolution(LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the FullAXS connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.

FullAXS-FTTA- strong, connector

Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the FullAXS connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.

With this new line of products, users can also easily removed, and through the open the entire remote radio box in do not need completely, its contents exposed in poor weather conditions bulkhead hole replace transponder.

For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FullAXS connector can be designed for either the application single mode or multimode optical fiber transmission.

Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:

– is a mechanical feedback to inform the operator when the connector completely docking

During or after installation, no cable buckling

– powerful bayonet locking, convenient, fast, secure mating

– a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead

– cost savings by eliminating the fiber in the management of the radio unit

The antenna feeder is connected to the specifications of the optical fiber.

Feature:
■ Open bulkhead for easy access to SFP
■ Positive feedback to operator when fully mated
■ One-hand mating
■ Duplex LC interface
■ Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
■ Robust bayonet locking for easy, fast, and secure mating
■ Multimode and singlemode
■ Water proof, dust proof and corrosion resistant
■ Expansion to RJ45, etc
■ Plug has tolerance free design, fully free floating in Z-axis
■ No Cable buckling at any time during or after installation
■ Cost effective glass-filled polymer or metal die casted bulkhead
■ Field installable version available

Specifications

Parameter

Standard

Parameter

Standard

 150 N Pull Force

IEC61300-2-4

Temperature

40°C – +85°C

Vibration

GR3115 (3.26.3)

Cycles

50 Mating Cycles

Salt Mist

IEC 61300-2-26

Protection Class/Rating

IP67

Vibration

IEC 61300-2-1

Mechanical Retention

150 N cable retention

Shock

IEC 61300-2-9

Interface

LC interface

Impact

IEC 61300-2-12

Adapter Footprint

36 mm x 36 mm

Temperature / Humidity

IEC 61300-2-22

Duplex LC Interconnect

MM or SM

Locking Style

Bayonet style

Tools

No tools required

 FTTA Fiber Patch Cord Drawing reference

PDLC 图纸 PDLC 接头图纸



GYFJH Cable

7MM 室外光缆图纸



Different Type Outdoor Patch Cord

ODC,YZC,IP67 patch cord

Performance

Each Cable is custom made in the China by Skilled Technicians (no assembly lines)
The cable is made with Genuine Corning Infinicore 300 glass for superior performance.
Insertion loss testing performed on every assembly. Our strict standards mandate a maximum allowable loss if 0.02 dB (or less)
Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants or other imperfections.
All cables serialized and test results are recorded
Guaranteed performance specification
The cable is duplex 2.0-7.0mm cable jacket which is the most popular
OFNP Rated for Plenum or Riser use

Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)
