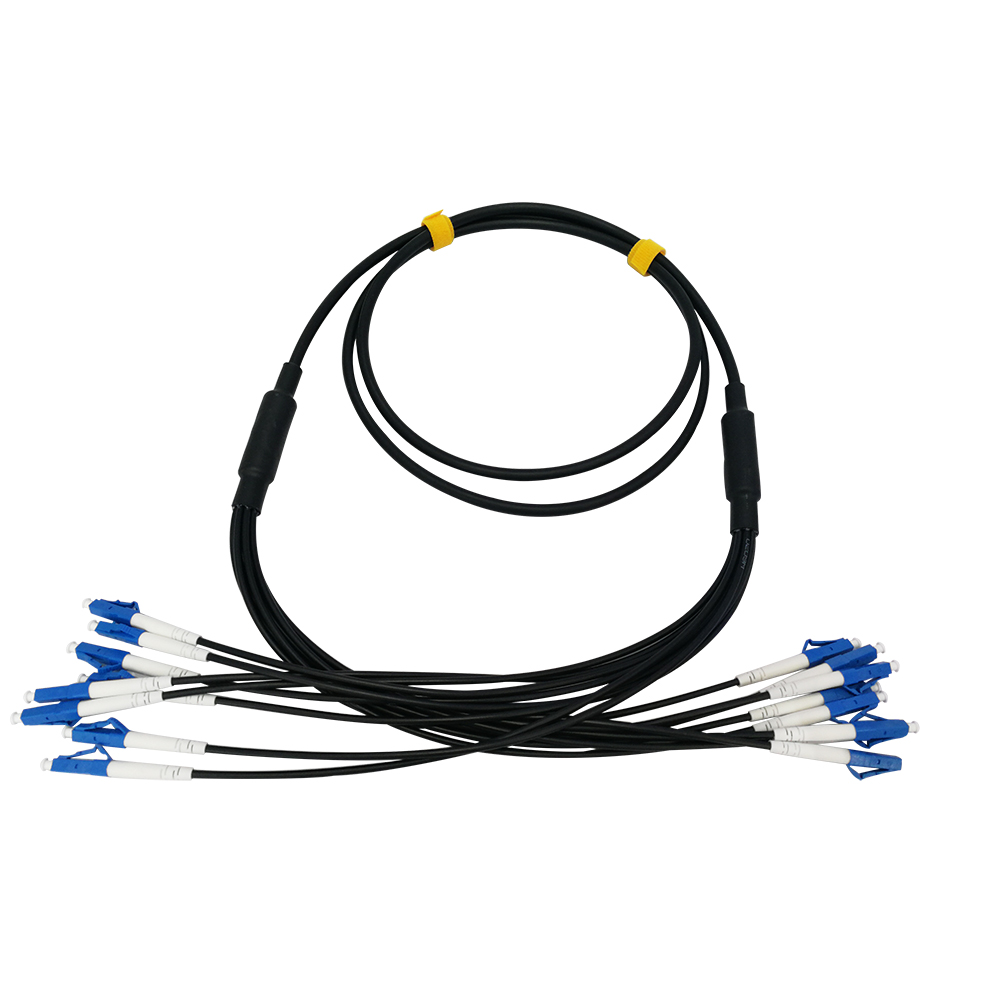

Huawei CPRI LC/LC FTTA outdoor fiber patch cord with 8Core Branch Cable

BBU/RRU CPRI FTTA Patch Cord 8 Core Single Mode GYFJH Outdoor Protected Branch Cable

10G-Link supplies FTTA(Fiber to the Antenna) DLC (Dual LC Connctor) SM GYFJH 2G.657A patch cord for TD-SCDMA,WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application. Our BBU/RRU Patch Cords include:

1. Dual LC Conector Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable Length = 10m, 20m…xxxM, A end (RRU) with PDL cover.

2. Dual LC Conector Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm Outdoor Protected Branch Cable Length(Without armored type) = 10m, 20m…xxxM

3. Dual LC Conector Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (armored TYPE) Length= 10m, 20m…xxxM.

CPRI 跳线插图

Features:

  • Standard Duplex LC connector, well connected with standard LC adaptor
  • Wall seal design,easy operation, strong and durable.
  • Broad temperature range and wide range of indoor and outdoor cables
  • Easy Operation, reliable and cost-effective Installation
  • IP67 protection, salt-mist proof, humidity proof, dust proof
  • Light weight,waterproof, dustproof, moistureproof , Metal hard housing.

 Applications:

Mainly used in wireless base station horizontal and vertical cabling

  • Widely used in FTTA & FTTH
  • Used for 3G 4G base station
  • BBU(Base Band Unit), RRU(Radio Remote Unit), RRH, LTE

基站插图02 CPRI 基站插图

1.Single mode fiber

Item

Unit

Specification

Attenuation

dB/km

1310nm≤0.4

1550nm≤0.3

Dispersion

Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

Zero dispersion wavelength

Nm

1300~1324

Zero dispersion slope

Ps/nm.km

≤0.095

Fiber cutoff wavelength

Nm

≤1260

Mode field diameter

Um

9.2±0.5

Mode field concentricity

Um

<=0.8

Cladding diameter

um

125±1.0

Cladding non-circularity

%

≤1.0

Coating/cladding concentricity error

Um

≤12.5

Coating diameter

um

245±10

bending, dependence        induced attenuation

1550nm,  1turns,32mm diameter  100rums,60mm diameter

≤0.5 db

Proof test

kpsi

≥100

2.Multi mode fiber

Item

Unit

Specification

Attenuation

dB/km

850 nm≤3.5

1300 nm≤1.5

Bandwidth

MHz·㎞

50/125um

62.5/125 um

850 nm≥200

850 nm≥160

1300 nm≥200

1300 nm≥200

Cladding diameter

um

125±1.0

Cladding non-circularity

%

≤1.0

Coating/cladding concentricity error

Um

≤12.5

Coating diameter

um

245±10

bending, dependence        induced attenuation

850nm,1300nm  100turns,75mm diameter

≤0.5 at 850 nm1300 nm

Proof test

kpsi

≥100

3.Connector Specification



ITEM

PARAMETER

Connector type

LC/UPC, SC/UPC, FC/UPC, ST/UPC.

LC/APC, SC/APC, FC/APC, ST/APC

Insertion Loss

<=0.2db

<=0.3db

Return Loss

>=50db

>=60db

Fiber mode

Single-mode/ Multi-mode, G.657A

Operating wavelength

1310, 1550nm

Test wavelength

1310,1550nm

Repeatability

<=0.1

Interchangeability

<=0.2dB

Durability

<=0.2dB

Fiber Length

1m, 2m….. any length optional.

Length and tolerance

10cm

Operating Temperature

-40C ~ +85C

Storage Temperature

-40C ~ +85C



Packaging Roll :

cof
