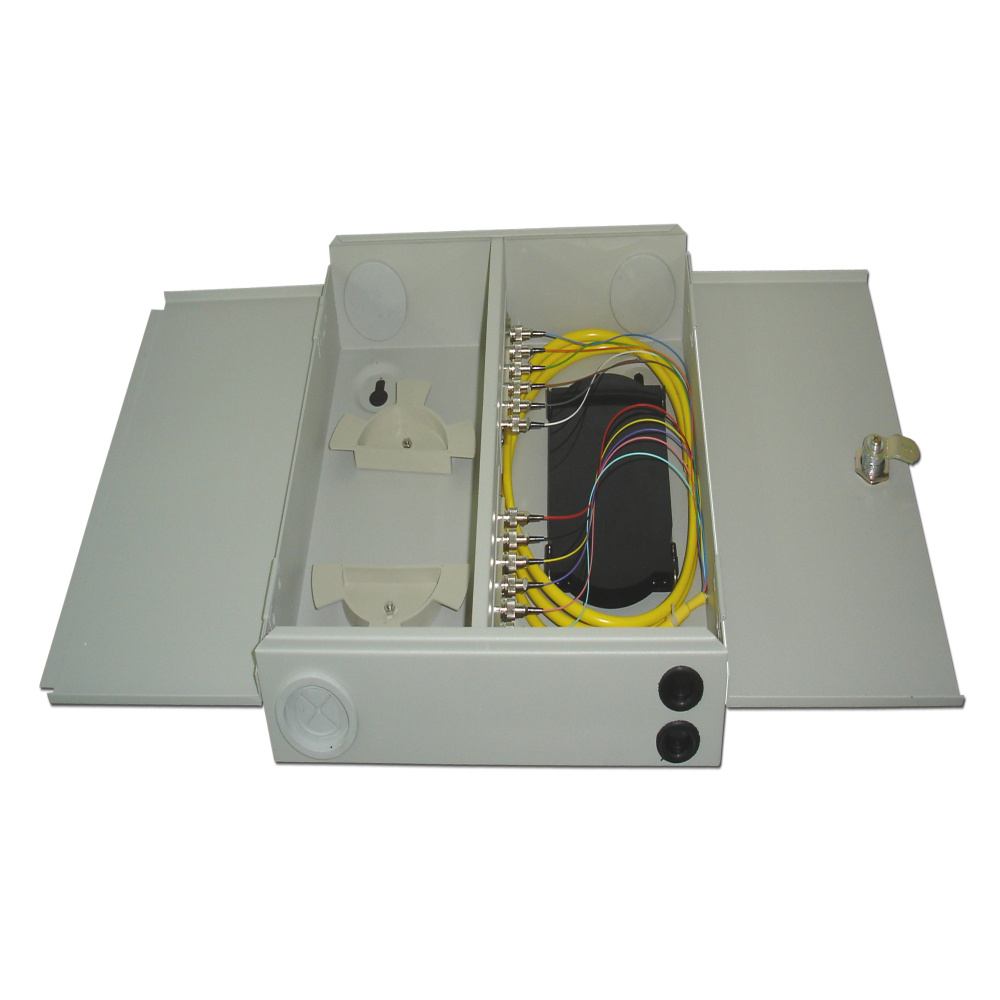

Indoor Wall-mount Fiber Optic Distribution Frame

Indoor wall type fiber optic distribution frame can manage both single fiber, ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.

Features:

With cold-roll steel box, splicing unit, distribution unit and panel

Various panel plate to fit different adapter interface

Adapters can be installed: FC, SC, ST, LC

Suitable for single fiber and ribbon & bundle fiber cables

Special design ensures the excess fiber cords and pigtails in good order

No interval and easy for management and operation

Application:

Telecommunications

Fiber to the home (FTTH)

LAN/ WAN

CATV

Ordering Information:

ODFI W 12



①Name: “ODF”: optic distribution frame

② ③Type: “I”: indoor using; “W”: wall-mount type

④Fiber quantity: “12”: 12 cores

Model Capacity/Fiber Quantity Dimension(mm) Remark
ODF-IW24 24 405x380x85 2pcs splice tray
ODF-IW48 48 405x380x140 4pcs splice tray
ODF-IW96 96 560x480x265 8pcs splice tray
ODF-24 Max.24 port 300x300x80mm weight 1.2kg
ODF-IW12 12 40.5x38x8.5 weight 4kg
ODF-IW12B 12 30x30x8.5 weight 3kg
ODF-IW24 24 40.5x38x8.5 weight 4.5kg
ODF-IW48 48 40x38x14 weight 5.8kg
ODF-IW72 72 40x38x14 weight 6.8kg
ODF-IW24-A 24 40x38x8.2 weight 4.3kg
ODF-08 Max. 8 port 22.5×22.5×6 weight 0.9kg
ODF-IW24-C 24 300*225*95mm 2.2kg
ODF-IW36-D 36 36.2*15.2*11.2
ODF-IW48-D Cold roll steel  361.7*191.8*111.1  48 fibers
ODF-IG96 96 cores 51x44x21cm 8pcs splice trays; no adapter plate for adapter installation
ODF-IG48 48 cores 51x44x17cm 4pcs splice trays; no adapter plate for adapter installation
ODF-IG24 24 cores 37x32x13cm 2pcs splice trays; no adapter plate for adapter installation
