IP65 Outdoor Wall Mount 96 Port Fiber Optical Terminal Distribution Box ODF

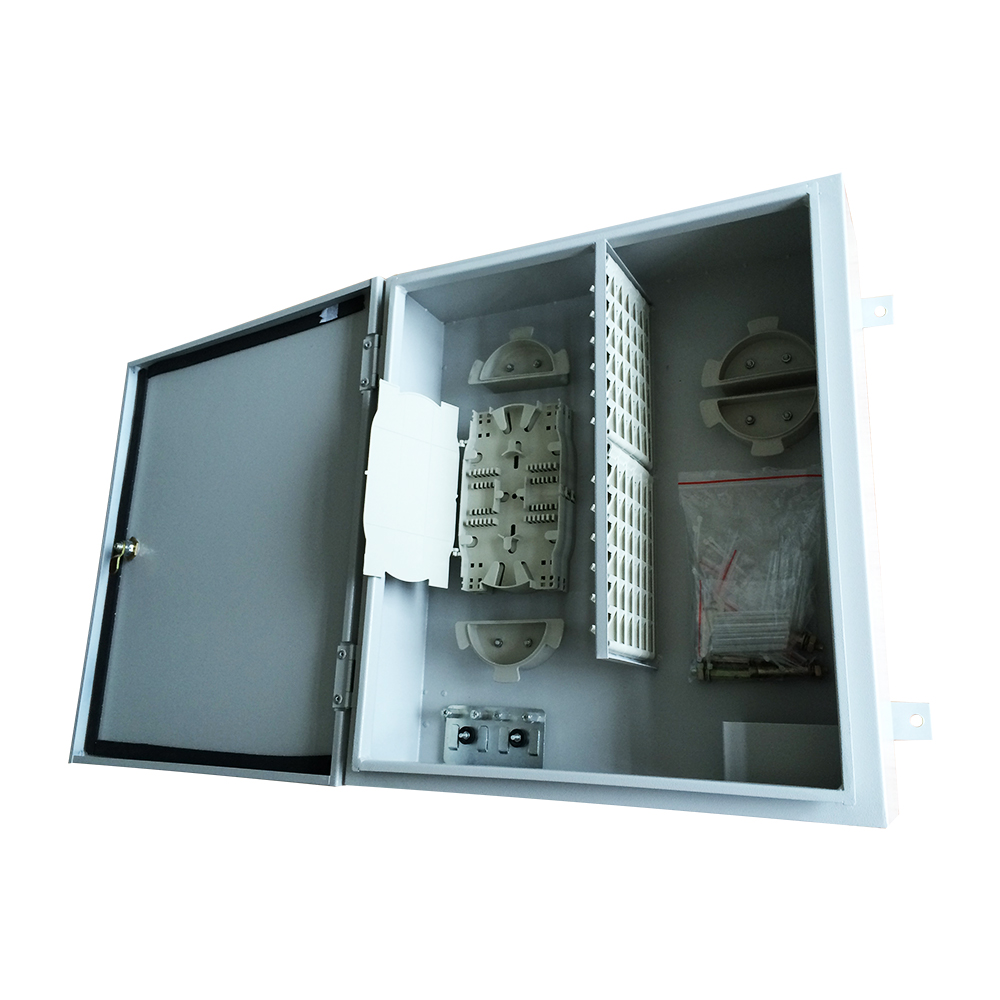

Outdoor wall type fiber optic distribution frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.

Description:

Fiber optic distribution frame provides efficient cable connections between outside plant cables
and equipment inside the buildings and communications facilities.

Box integrates fiber splicing, storage and cable connections together in a unit. They can manage
both bundle type and ribbon type fiber cables. It is with large working space to integrate the pigtail,
cables and adapters for fiber management.

This fiber optic distribution frame is designed for outdoor wall mounted using, cold roll steel material,
with adapter plate & splice trays at both sides for fiber splicing, distribution and management.

JZ45FQANVUJ}(F{]4W1S4[5K9UOZ`0LXMF`CILVAO3_][5

Features:

With plastic plates can manage both single fiber and ribbon & bundle fiber cables

FC, LC, SC, ST output interfaces optional

Large working space to integrate the pigtail, cables and adapters

Made of cold roll steel, static spreading-plastic, small dimension and exquisite, easy for operation

Special design ensures the excess fiber cords and pigtails in good order

Inner components as follows:

Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers

Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails

The brim of the box is sealed

R{I]F5S}_V5[91UH(B06MCL

Application:

Telecommunications

Fiber to the home (FTTH)

LAN/ WAN

CATV

Ordering Information:

Ordering Information:

ODFO W 48



① Name: “ODF”: optic distribution frame

② ③ Type: “O”: outdoor using; “W”: wall-mount type

④ Fiber quantity: “48”: 48 cores

Model Fiber Quantity Dimension(cm) Weight(Kg)
ODF-OW12 12 46.5x41x11 7
ODF-OW24 24 450x380x90mm 7
ODF-OW24-S 24 349.6x330x79.8mm Splice tray2pcs
ODF-OW48 48 46x41x15.5 7.8
ODF-OW48-S 48 349.6x330x139.8mm Splice tray4pcs, each 12 fibers
ODF-OW72 72 550x 480x 267 6pcs splice tray
ODF-OW96 96 550x 480x 267 8pcs splice tray
ODF-OW96A 96 55x48x 26.7 11.8
ODF-OW72A 72 55x48x26.7 11
ODF-OW48A 48 46x41x15.5 7.8
ODF-OW24A 24 46.5x41x11 7
ODF-OW12A 12 46.5x41x11 6.8
