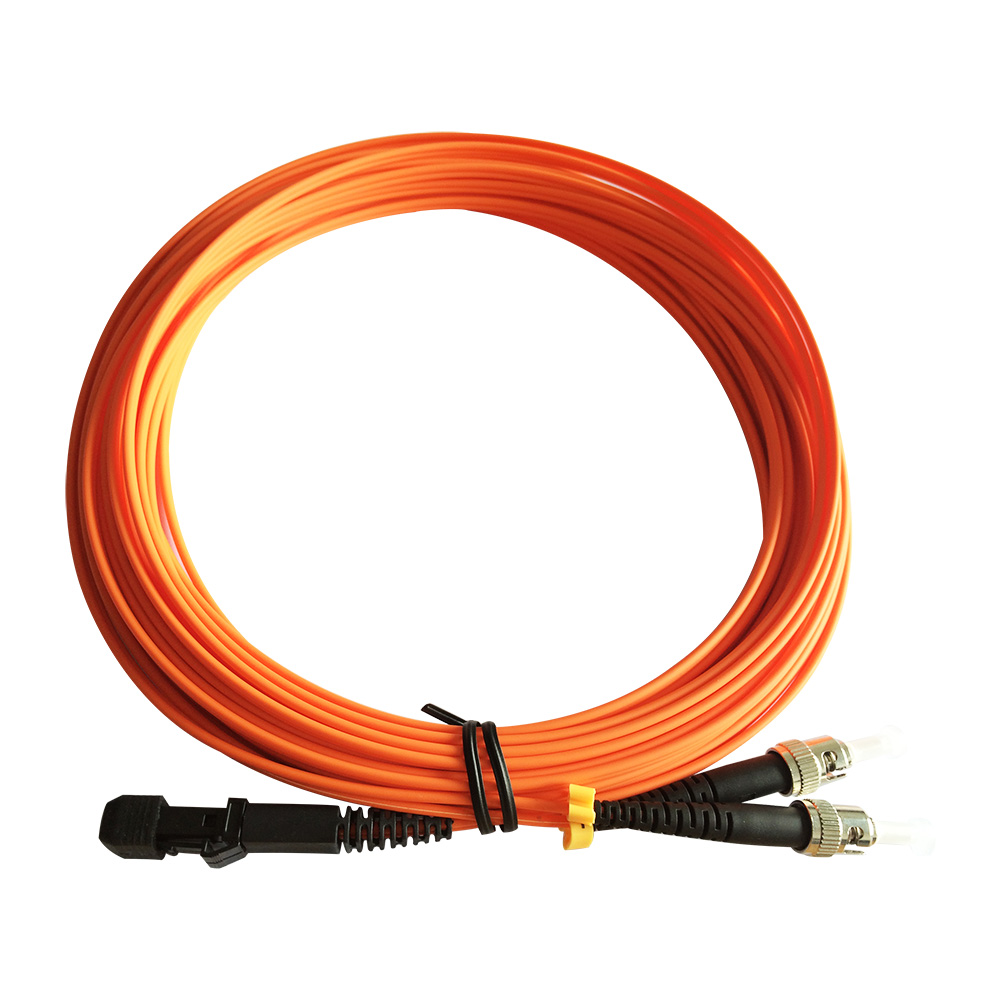

MTRJ to ST Multi Mode Optical Fiber Patch Cord suppliers

Product Introduction

10G-Link Fiber 62.5/125 OM1 or 50/125 OM2 Multimode MTRJ fiber optic cable assemblies are made to order in the China by skilled technicians and are constructed with the highest quality components utilizing Genuine Corning Infinicore 300 Glass and High Grade Connectors with ceramic ferrules for increased durability and accuracy. These fiber optic patch cables feature OFNP Plenum Rated jackets (at no extra cost) which make them useful in more environments than regular OFNR cables.

10G-Link fiber optic cables are fully tested to guarantee top performance. Our strict testing standards mandate a maximum allowable insertion loss if 0.02 dB (or less). Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants, or other imperfections which can pick up defects that insertion loss testing alone may miss. Each assembly is serialized for easy identification and sealed in individual Ziploc bags. Test results are included in each order.

MTRJ 接头 MTRJ-LC DX 插图

Available in the following colors: Orange (Standard), Red, Yellow, Green, Blue, Purple Grey, Black, White, Brown, and Pink.

Product Specification (Parameter) of MTRJ Fiber Patch Cable

Connector MTRJ to ST Jacket OD 2.0mm,3.0mm,1.6mm,2.4mm
Fiber Mode 50/125μm,62.5/125um Jacket Color Orange
Polish UPC to UPC Wavelength 850/1300nm
Fiber Type Duplex Jacket Material LSZH
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥35dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C
Polarity A(Tx) to B(Rx) Fiber Grade G.651

Performance

• Each Cable is custom made in the China by Skilled Technicians (no assembly lines)
• The cable is made with Genuine Corning Infinicore 300 glass for superior performance.
• Insertion loss testing performed on every assembly. Our strict standards mandate a maximum allowable loss if 0.02 dB (or less)
• Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants or other imperfections.
• All cables serialized and test results are recorded
• Guaranteed performance specifications
• The cable is duplex 2.0mm cable jacket which is the most popular
• OFNP Rated for Plenum or Riser use

Product Application of Fiber Optic Patch Cables

Our premium low loss range of patch cords are suitable for telecom, datacom, data center and some critical applications. The patch cords provide flexible interconnection to active equipment, passive optical devices and cross-connects.

  1. Gigabit Ethernet
  2. Computer fiber networks
  3. Fiber test equipment
  4. Communication rooms
  5. Fiber Optic Communication System
  6. Optical fiber connected and transmitted equipment
  7. Defense combat readiness
  8. Active device termination
  9. Telecommunication networks
  10. Video and Multimedia
  11. Premise installations
  12. LAN(Local area networks)
  13. FTTH  (Fiber to The Home) and FTTX applications
  14. CATV (Cable Television)
  15. FOS (fiber optic sensor)

光纤跳线应用插图

Product Features of Fiber Optic Patch Cords

·All parts are ROHS compliant
·Low insertion loss, ensure highest network connection performance
·100% tested on optical performance (Insertion Loss & Return Loss)
·End-face geometry requirement comply to Telcordia GR-326-CORE
·Available in Singlemode(OS1-9/125), Multimode(OM1-62.5/125, OM2-50/125, OM3-50/125, OM4-50/125) ,OM5 fibers
·Fiber diameter(mm): Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.4, Φ2.8, Φ3.0, Φ4.0
·Cable material: OFNR, OFNP, LSZH
·Customer specified length
·Corning, YOFC, Draka, OFS fiber available for selection

MTRJ 插图

Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)

Patch cord 车间拼图

Payment and Shipping Terms

ESTIMATED LEAD TIMES: 1-2 business days (or possibly more depending on quantity).
Payment terms: MoneyGram ,Western Union,L/C,TT
Shipping terms:By air, by sea,by express( DHL,Fedex,TNT,UPS,EMS)

Payment and shipping 图片_副本
