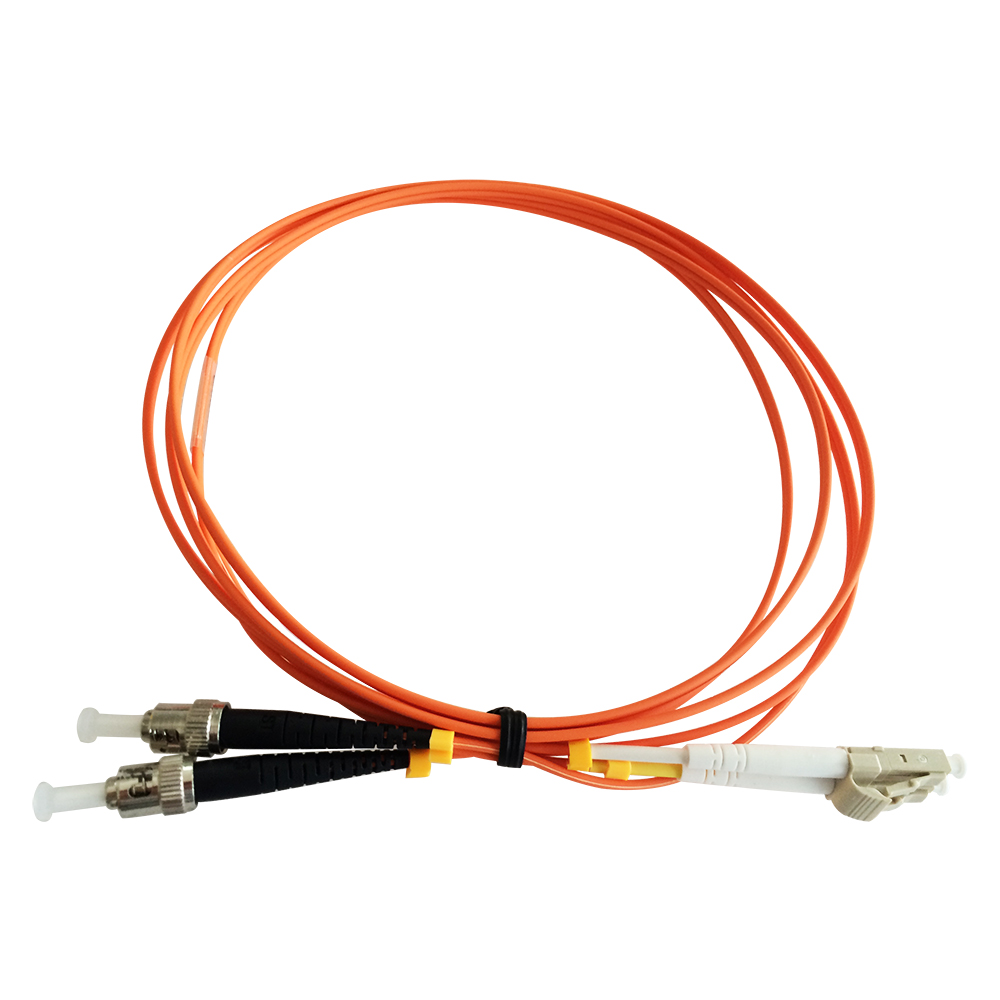

ST-LC Multimode Patch Cord

High Quality and Cost-effective ST/UPC-LC/UPC Multimode Fiber Optic Cable

The ST/UPC-LC/UPC multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.

 Product Specification (Parameter) of Multimode duplex ST/UPC-LC/UPC Fiber Optic Cable Construction

Connector Type LC/SC/ST/FC/LSH/MU/MTRJ Polish Type UPC to UPC
Fiber Mode OM1 62.5/125μm ,OM2 50/125um Wavelength 850/1300nm
Fiber Count Duplex Fiber Grade G.651
Insertion Loss ≤0.3dB Return Loss ≥30dB
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Minimum Bend Radius 30mm Cable Diameter 2.0/0.9/3.0mm
Cable Jacket PVC/LSZH/OFNP Jacket Color Orange
Polarity A(Tx) to B(Rx) Operating Temperature -40~75°C

Performance

10 Gigabit Ethernet: up to 33 meters at 850nm, up to 300 meters at 1300nm
1 Gigabit Ethernet: up to 275 meters at 850nm, up to 550 meters at 1300nm
100 Megabit Ethernet: up to 2,000 meters at 850nm
Insertion Loss: <0.25dB
Return Loss: ±0.35dB
Durability: >500 Matings
Operating Temperature: -20°C to 70°C (-4°F to 158°F)

Product Application of ST/UPC-LC/UPC Multimode Fiber Optic Cable&Fiber Optic Patch Cables
Patch cables are used for connections to CATV (Cable Television), telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home),
LAN (Local Area Network),FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment, Defense combat readiness, etc.
1.Gigabit Ethernet
2.Computer fiber networks
3.Fiber test equipment
4.Communication rooms
5.Fiber Optic Communication System
6.Optical fiber connected and transmitted equipment
7.Defense combat readines
8.Active device termination
9.Telecommunication networks
10.Video and Multimedia
11.Premise installations
12.LAN(Local area networks)
13.FTTH  (Fiber to The Home) and FTTX applications
14.CATV (Cable Television)
15.FOS (fiber optic sensor)

光纤跳线的应用



Product Features of ST/UPC-LC/UPC Multimode Fiber Optic Cable &Fiber Optic Patch Cords
·Low insertion loss ≤0.3dB;
·High return loss,Multimode UPC≥35dB
·Good repeatability;
·Good interchange;
·Excellent environmental adaptability;
·Precise connector
·Excellent mechanical capability
·Fiber optic connector accord with ISO9001,ROHS,CE
Connector options include: Epoxy
—— ST/UPC —— LC/UPC Temperature coefficient 120tg
Performance   Curing method Outgassed
Insertion Loss: <0.3dB typical(UPC) Residual epoxy Not specified
Return Loss: >35dB typical(UPC) Configuration Control
               Data tracking IL and RL data printed on each cable
Geometry   Cable Type options include:
Radius of curvature     7-25mm Multi mode(62.5/125) Options available
Apex offset             0-50um Simplex and Duplex cables available
Radial fiber height     -50 to +50nm —— Riser —— Plenum
Angular offset          <0.3degrees —— Low smoke/zero halogen —— Bend-insensitive
Fiber roughness         0-25nm Cable outer jacket diameter options include:
Ferrule roughness       0-50um —— 900um —— 1.6mm
Fiber core 0n㎡ —— 2.0mm —— 3.0mm
Company and Products advantages:
1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9 and so on)
