0.9mm 2.0mm 3.0mm LC SM&MM Fiber optic connector

The LC Connectors and Adapters were developed by Lucent Technologies. These connectors are composed of a plastic housing with an RJ45 push-pull style clip. Also considered a Small Form Factor (SFF) Connector by using a φ1.25mm OD Ferrule, these connectors are compact, high density and high performing at a low cost.Fiber Optic Connectors we are offered in both single and multimode. Contacts can be used in a wide variety of connector styles, and options include ingress protection for being dust-tight and waterproof. With the increasing demands for higher bandwidth, fiber optic is the choice for growing businesses.

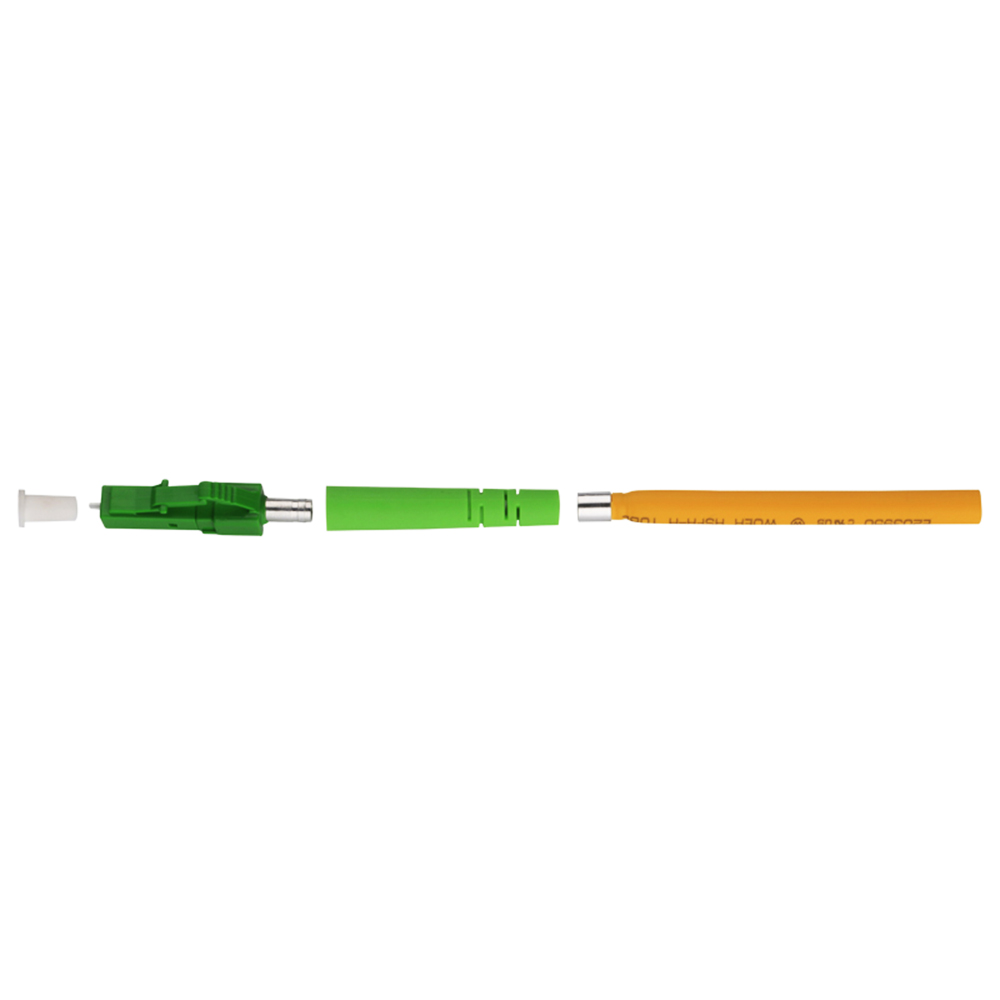

连接器图片

By using a tuning tool, our LC Connectors have the ability to adjust the gap of the central axis in six different positions after the LC Connector is assembled enabling a very low connection loss. Our LC Connectors consist of two types of LC Duplex Clips, our standard non-removable type and our side clip removable type.

Because we are a specialty manufacturer of precision ferrules, easy fiber insertion, precision polish process, and high quality of the connectors are realized. There is no need to change the condition of the assembling and polishing of the ferrules because we can continue to supply completely same ferrules at the same quality level at anytime.
By using our top quality zirconia split sleeves, we can also ensure a stable connection and performance when using our LC Connectors along with our Adapters.

Drawing

LC 连接器插图 LC 跳线连接器 图纸

Feature.

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule

Application.

Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV
High speed transmission systems
Fiber optic sensing
