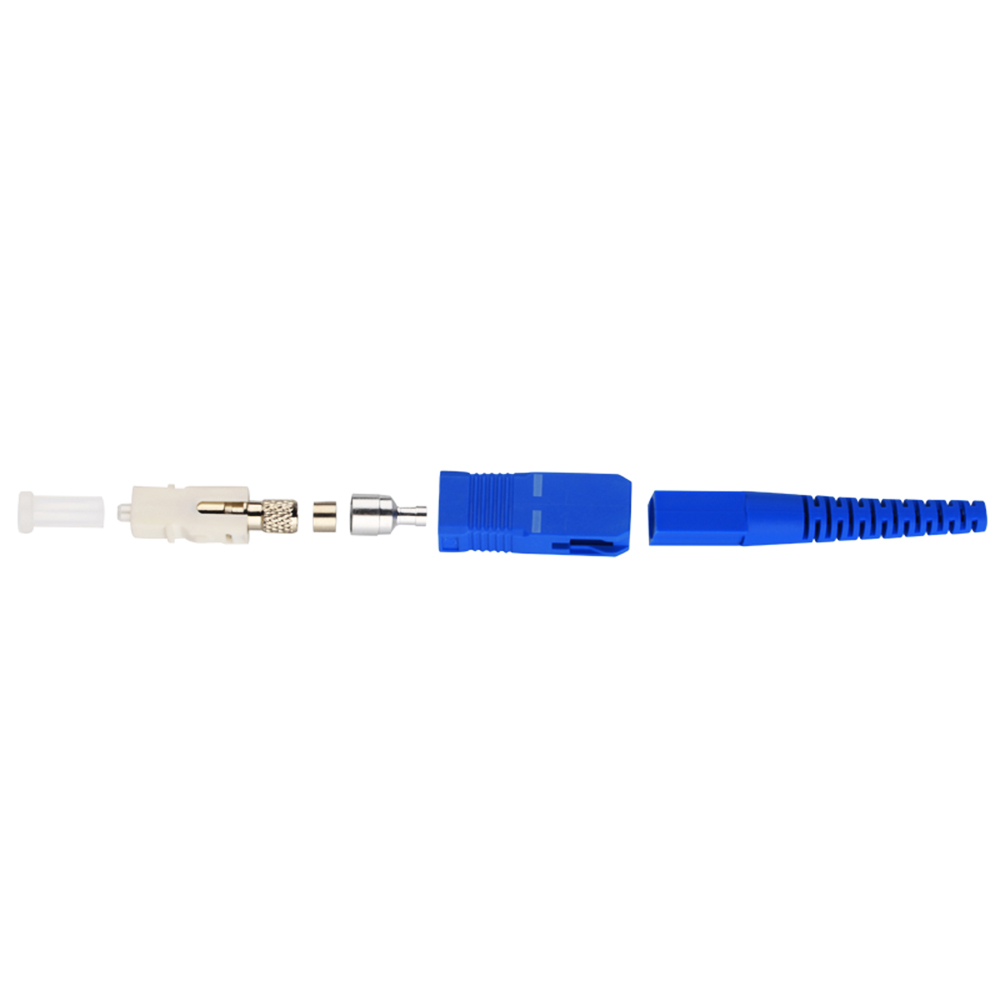

Assembled SC Fiber Optic Connectors

Optical fiber connectors are used to join optical fibers where a connect/disconnect capability is required. Due to the polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are often assembled onto optical fiber in a supplier’s manufacturing facility. However, the assembly and polishing operations involved can be performed in the field, for example, to terminate long runs at a patch panel.

Optical fiber connectors are used in telephone exchanges, for customer premises wiring, and in outside plant applications to connect equipment and cables, or to cross-connect cables.

Most optical fiber connectors are spring-loaded, so the fiber faces are pressed together when the connectors are mated. The resulting glass-to-glass or plastic-to-plastic contact eliminates signal losses that would be caused by an air gap between the joined fibers.

连接器图片

Because we are a specialty manufacturer of precision ferrules, easy fiber insertion, precision polish process, and high quality of the connectors are realized. There is no need to change the condition of the assembling and polishing of the ferrules because we can continue to supply completely same ferrules at the same quality level at anytime.
By using our top quality zirconia split sleeves, we can also ensure a stable connection and performance when using our Connectors along with our Adapters.

 SCUPC 2.0mm SC UPC 3.0mm SCUPC 0.9mm

Feature.

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule

Application.

Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV
High speed transmission systems
Fiber optic sensing

  Singemode(UPC) Singemode(APC) Multimode
Insertion loss ≤ 0.2db ≤ 0.2db ≤ 0.25db
Return loss ≥55db ≥65db ≥30db
Durability ≤ 0.1db typical change, 1000 times mating
Operating Temperature -45 to +85 degree
Ferrule Hole Sizes 125.0+1/-0um, Concertricity: ≤1.0um 125.0+1/-0um, Concertricity:≤0.5um 125.0um, Concertricity: ≤3.0um
125.3+1/-0um, Concertricity: ≤1.0um 125.3+1/-0um, Concertricity:≤0.5um 127.0um, Concertricity: ≤3.0um
125.5+1/-0um, Concertricity: ≤1.0um 125.5+1/-0um, Concertricity:≤0.5um 128.0um, Concertricity: ≤3.0um
126.0+1/-0um, Concertricity: ≤1.0um 126.0+1/-0um, Concertricity:≤0.5um
