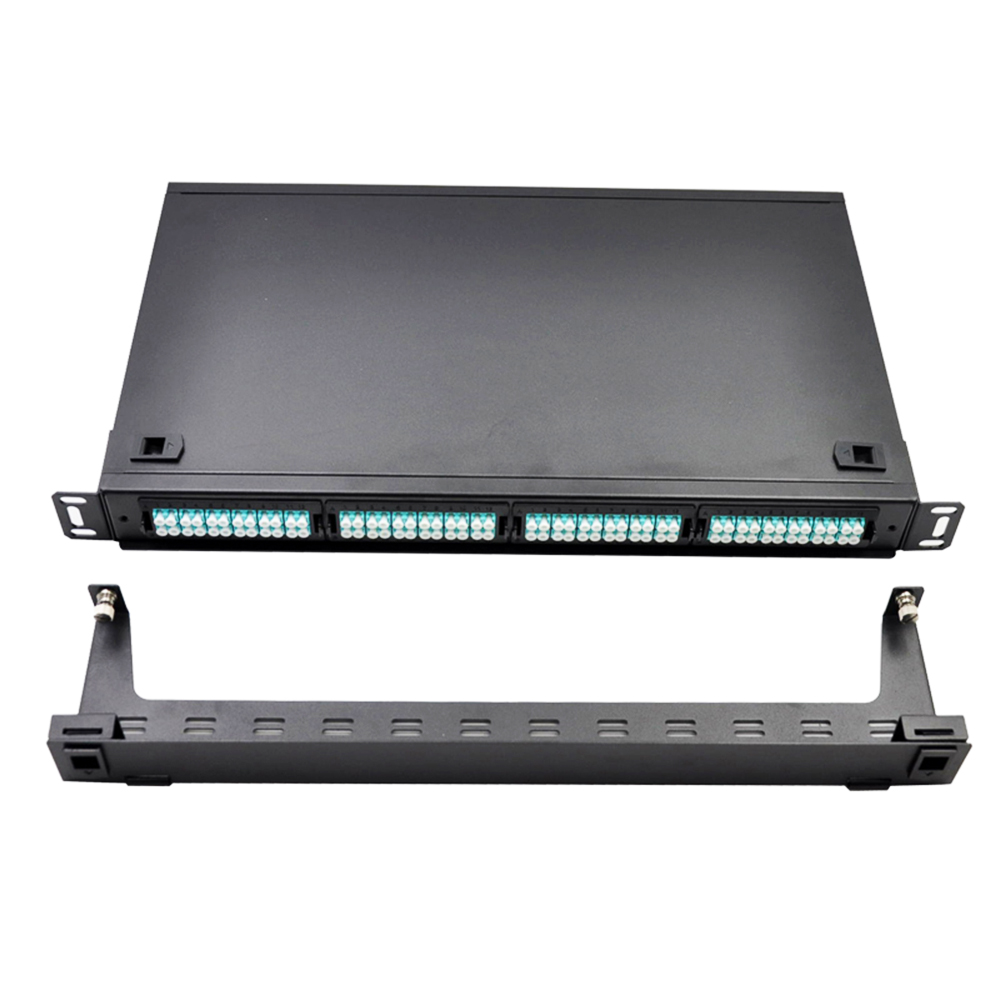

1U High Density MPO Patch panel

Short Description:

Model: ODF-MPO
Connector Type: ST/LC/FC/SC
Number of Ports:12-96
Panel Type:Sliding
Capacity:96fibers
Rack Height:1U
Dimension(mm):430*354.1*44mm
Weight(Kg):5
Color:White or black
Material: Cold-roll steel


Product Detail

Product Tags

[Description]

10G-Link MPO 1U Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet. You can assemble with LC adapter panel. and it can finish 1U 96 cores splicing.

插图

[Technical Features]

◆Can install 4pcs 24xLC cassettes,and manage 96 cores max;

◆Assembled with 4 pcs thin 24C fusion splice plates, can reach 96 cores; We also put the cable fasten device, and it can make the installation convenient;

◆Produced with high-quality cold-rolled steel sheet, the main body’s depth is 1.5mm;

◆Removable cable management, look elegant and use conveniently;

◆No fur, no bubble, no screw to fasten, snap-in top cover can be opened without any tools.

插图2 插图313OSOTSF010ZE)8GCQ]V0L4

Product name 1U High Density Patch panel
Material Cold-rolled steel sheet
Size 430*354.1*44mm
Manufacturer 10GLINK Communication Equipment Co., Ltd.
Commisioning Date 2017/08/210
