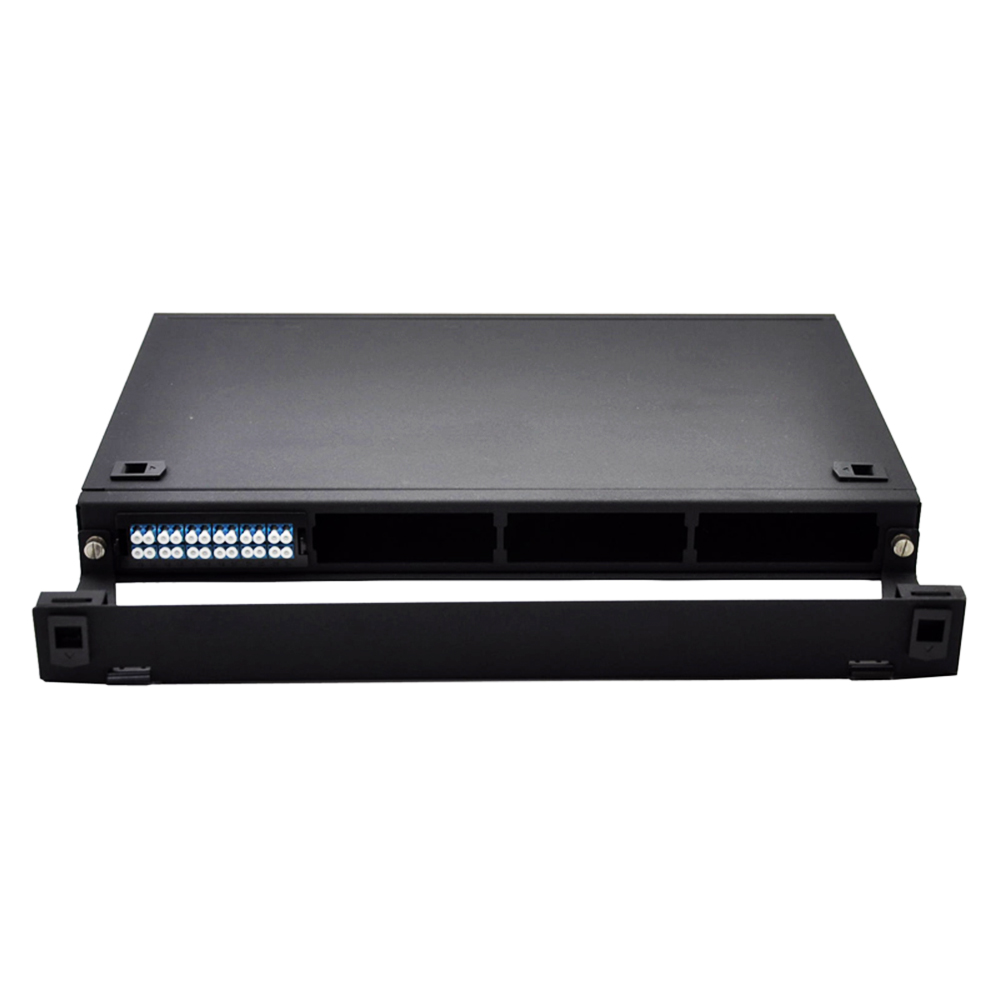

1U Drawing Type Patch Panel

[Description]

10G-Link 1U drawing type Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet. You can assemble with LC adapter panel. and it can finish 1U 96 cores splicing.插图

[Technical Features ]

◆Drawing type design, with 3 flexible guide rail, operate more fluently and flexibly;

◆Can install 4 pcs adapter panel, and manage 96cores max;

◆Usually assembled with 2 layers fusion splice plates with ears, and can splice 48 cores accordingly. If for splicing 96 cores, we can provide 4 pcs thin fusion splice plates;

◆Produced with high-quality cold-rolled steel sheet, the main body’s depth is 1.2mm;

◆With cable management plate, more cabling ways.

插图2

HXO1QG7B0YM94{N45K8AETD  WI6XT]@OVZR30B`(B@[CRIB



Product name  1U Drawing Type Patch panel
Material Cold-rolled steel sheet
Size 430*362.4*44mm
Manufacturer 10GLINK Communication Equipment Co., Ltd.
Commisioning Date 2017/12/010

图纸
