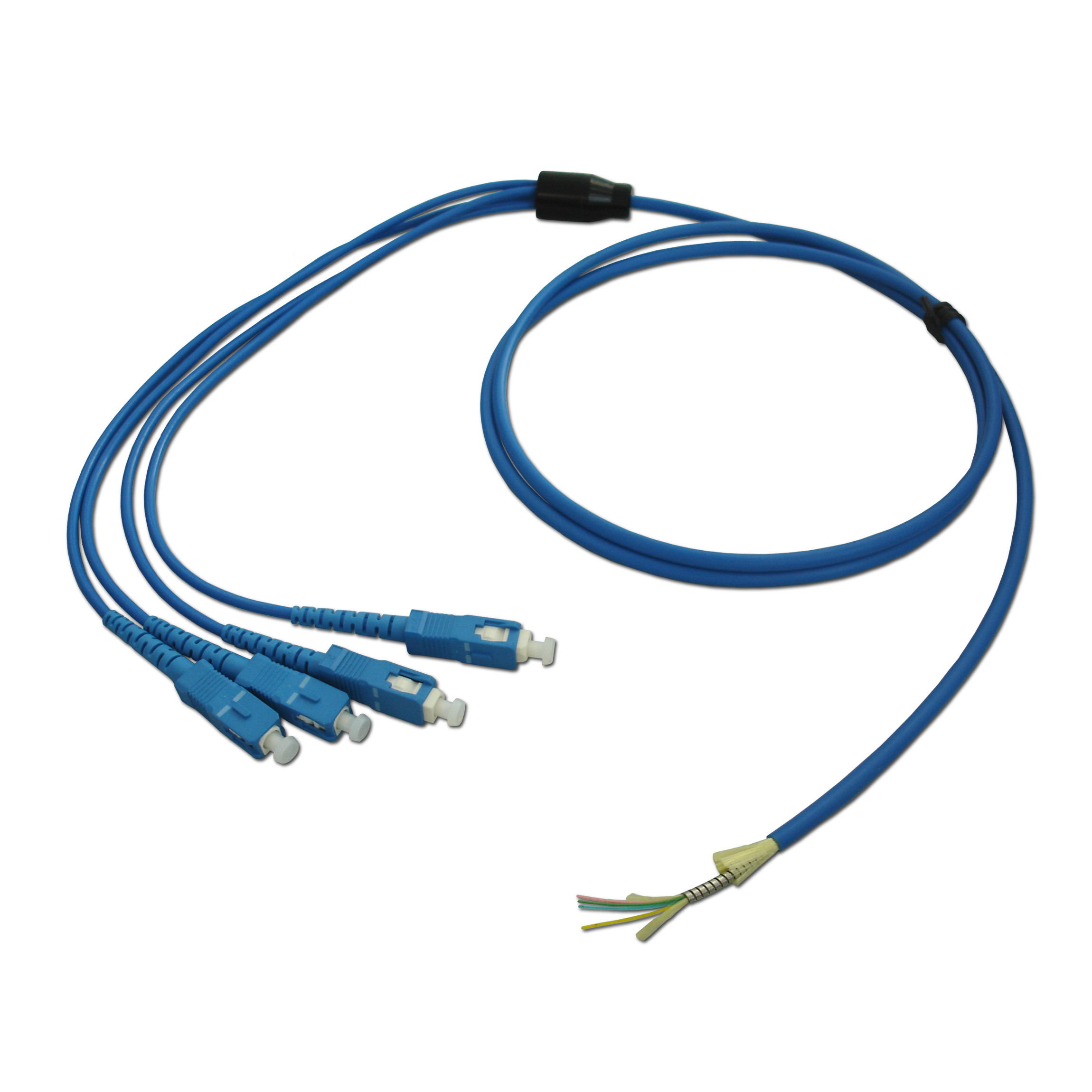

Outdoor/indoor Underground 4core Sc Fiber Optic Pigtail Bunchy Pigtail Fiber

SC/UPC Armored Cable Fiber Optical  Pigtails with 4 SCUPC Connectors

10G-Link Armored Cable Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

10G-Link Fiber supply LC,SC,FC,ST fiber optic pigtails, with very competitive prices.  We offer 3 primary fiber versions including the 9/125um single mode, 62.5/125 multimode and 50um OM3 10Gb types, These fiber pigtails are with premium grade connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtail and duplex fiber pigtails are available, with different cable color, cable diameter and jacket types optional.

SC 尾纤拼图

Features of SC Armored Fiber Optic Pigtails:

1) Superior qualified standard PC, APC, UPC, SPC polishing;

2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);

3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;

5) Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;

6) FC, SC, LC, MU, ST, MT-RJ, etc connector options

7) Simplex and duplex connector available; 8) Good exchange ability and good durability;

9) Available in fiber bunch, ribbon fan-out, pigtail available;

10) Meets ISO9001, ROHS and Bell core GR 326-core standards;

11) Customized specifications are welcomed.

 Armored Cable Drawing:

铠装双芯 光缆示意图 铠装单芯光缆结构图

Applications of  SC Armored Fiber Optic Pigtails:

1) CATV, metro test equipment;

2) Telecommunication networks;

3) Local area networks (LAN);

4) Wide area networks (WAN);

5) Premise installations;

6) Data processing networks;

7) Video and military active device termination.

 The most common is know as the fusion splice on pigtail, and the 12 fiber or 6 fiber multi color pigtail are easy to install and provide a premium quality fiber optic connection.  We also offer Individual single pigtails, Discounted 6 packs, or 12 Packs.  Also are 12 fiber or 6 fiber jacketed pigtails .

Parameter:

Connector A SC Connector B Unterminated
Fiber Mode 9/125um  Fiber Type Duplex or 4Fibers
Polish UPC Cable Diameter fan out 2.0mm
Jacket Material PVC/LSZH Jacket Color Blue or others
Wavelength 1310nm/1550nm Durability >1000 Times
Insertion Loss ≤0.3dB Interchangeability ≤0.2dB
Return Loss ≥50dB Vibration ≤0.2dB
Operating Temperature -40~75°C Storage Temperature -45~85°C

Company and Products advantages:

  1. 1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
    2.Good supply capacity(20K-30K pieces connectors each day)
    3.Fast delivery time(1-3days)
    4.Complied to ISO9001 quality system
    5.100% testing before shipment
    6.3D passed testing with report for option
    7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)

工厂车间插图

Payment and Shipping Terms

Estimated Lead Times: 1-2 business days (or possibly more depending on quantity).

Payment terms: MoneyGram ,Western Union,L/C,TT

Shipping terms:By air, by sea,by express( DHL,Fedex,TNT,UPS,EMS)
