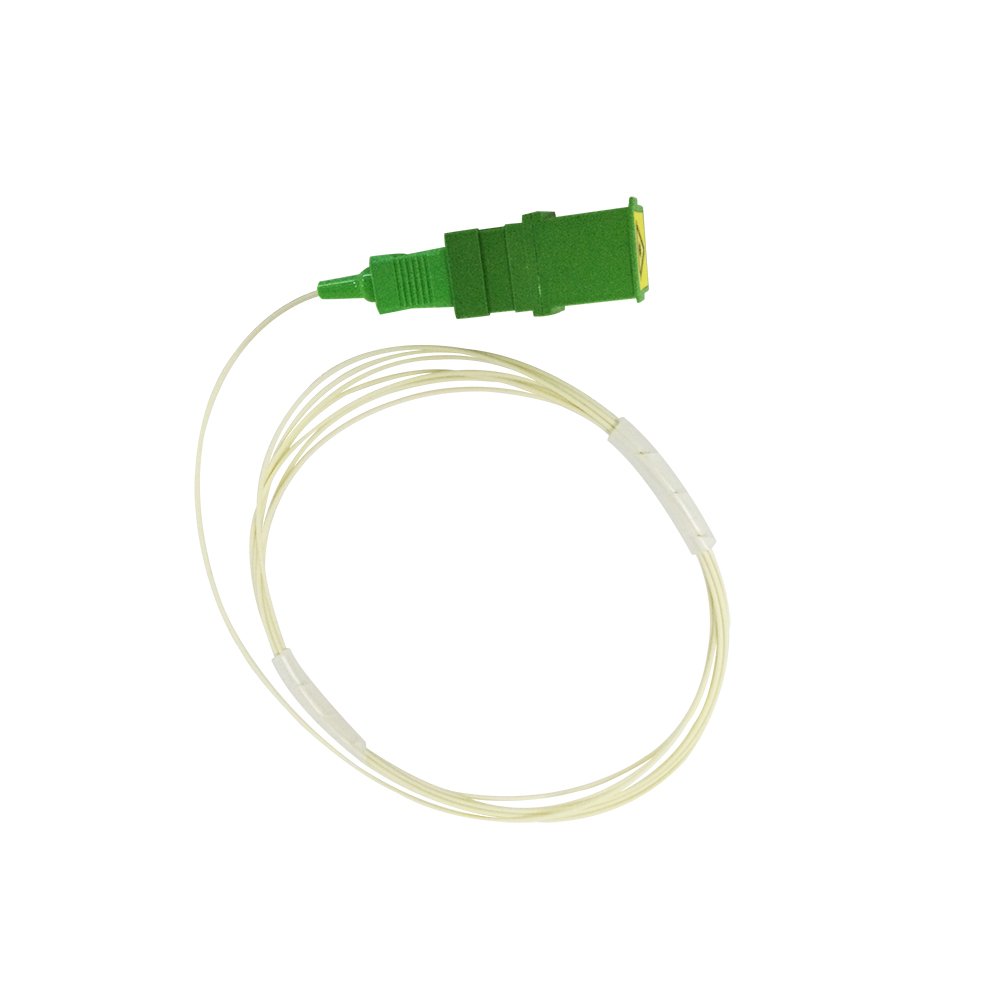

SC APC Fiber Optic Pigtails with SCAPC Adapter one side

Product Introduction of the Pigtails SCAPC Simplex Singlemode G652D With The Lowest Insertion Loss And High Return Loss

Singlemode (9/125) Simplex Pigtails fiber is generally yellow, with a blue connector, and a longer transmission distance. LC/LC Connector design ,LSZH Jacket Cables are classified by the connectors on either end of the cable; some of the most common cable configurations include FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, and SC-ST.The connector’s inserted core cover conforms to APC, UPC, or PC configuration. A UPC inserted core cover is flat and is used in SARFT and early CATV. An APC connector’s inserted core cover is oblique (about 30 °, ±5 °).To reduce the back reflection of a connector,UPC polish. Industry standard is a minimum of–40 dB for PC back reflec-tion measurement and–50 dB for UPC back reflection measurement. If even less back reflection is required, an APC might be necessary. An APC connector has an 8ºangle cut into the ferrule. These connectors are identifiable by their green color. An APC polished connector has an Indus-try Standard Minimum of–60 dB measurement. APC fiber ends have low back reflection even when disconnected.

SC 尾纤拼图

Pigtails : SC/APC, G657 A2, Single Mode, Simplex , LSZH, conector color green, cable diameter 900 µm, cable color ivory white, semitight, Length 2 meters.

SC pigtails

Adapters: SC/APC, Single Mode, Simplex, color all green, with green Shutter, without metal clip

SC adapter

  Specifications
Standard   Single mode Multimode
IEC61300-3-4 Insert Loss ≤0.20dB ≤0.25dB
IEC61300-3-6 Return Loss ≥50 dB (PC)
≥55 dB (UPC)
≥65 dB (APC)
IEC61300-2-2 Durability <0.20 dB typical change, 1000 mating
IEC61300-2-22 Operating Temperature From -40 to + 80°C From -40 to + 80°C
IEC61300-3-35 Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1.0μm 125μm, Concentricity: 1≤3μm
    125.5+1/-0μm, Concentricity: ≤1.0μm 127μm, Concentricity: 1≤3μm
    126.0+1/-0μm, Concentricity: ≤1.0μm 128μm, Concentricity: 1≤3μm
DELIVERY COMPONENTS

1 package = Patch Cord(x1) Adapters (x2) Plastic cable tie (x2) Label with product name, Serial number (S/N), ILA and RLA data

3m patch cord with adapter both end

Product Application of Fiber Optic Pigtails

Fiber Optic Pigtails are used for connections to CATV (Cable Television), telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home), LAN (Local Area Network),FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment, Defense combat readiness, etc.

  1. Gigabit Ethernet
  2. Computer fiber networks
  3. Fiber test equipment
  4. Communication rooms
  5. Fiber Optic Communication System
  6. Optical fiber connected and transmitted equipment
  7. Defense combat readiness
  8. Active device termination
  9. Telecommunication networks
  10. Video and Multimedia
  11. Premise installations
  12. LAN(Local area networks)
  13. FTTH  (Fiber to The Home) and FTTX applications
  14. CATV (Cable Television)
  15. FOS (fiber optic sensor)

光纤跳线适用范围 英文版

Product Features of Fiber Optic Pigtails With The Lowest Insertion Loss And High Return Loss
·Low insertion loss ≤0.3dB;
·High return loss,Singlemode UPC≥55dB,APC≥65dB ;
·Good repeatability;
·Good interchange;
·Excellent environmental adaptability;
·Precise connector
·Excellent mechanical capability
·Fiber optic connector accord with ISO9001,ROHS,CE

Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9 and so on)
