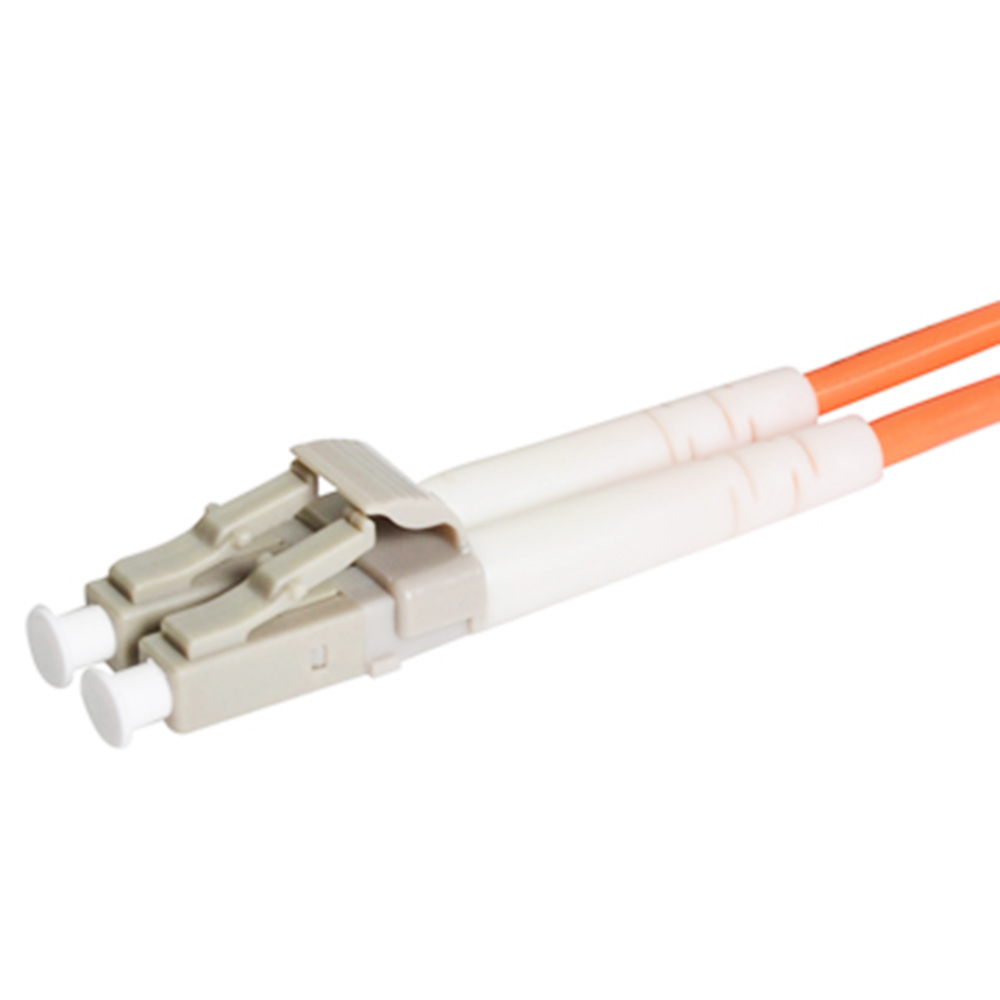

LC 3.0mm Multimode Fiber Optic Patch Cord

Product Introduction of the Multimode Duplex Fiber Patch Cable With LCUPC/LCUPC Connectors

With LC to LC termination, this high quality fiber optic patch cable is specificially designed for ethernet, multimedia, or communication applications. The small LC connector takes HALF the size of traditional SC and ST fiber connectors, since it offers twice the port density of conventional SC and ST connectors to satisfy the need for higher port density in telecom closets, equipment rooms, and work areas.
The LC connector’s RJ-style latch clip design gives each connection greater durability in resisting snagging, pulls, strains and impacts during cabling installs and maintenance. Plus, it is easy to engage and disengage with the “telephone jack style” release mechanism. The plenum rating provides the fire protection required to run this cable within walls and air plenums without using conduit.
The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.

Product Specification (Parameter) of Multimode duplex Fiber Patch Cable LCUPC/LCUPC

Connector LC to LC Jacket OD 3.0mm
Fiber Mode 62.5/125μm Jacket Color Orange
Polish UPC to UPC Wavelength 850/1300nm
Fiber Type Duplex Jacket Material LSZH
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥35dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C
Polarity A(Tx) to B(Rx) Fiber Grade G.651

Performance
10 Gigabit Ethernet: up to 33 meters at 850nm, up to 300 meters at 1300nm
1 Gigabit Ethernet: up to 275 meters at 850nm, up to 550 meters at 1300nm
100 Megabit Ethernet: up to 2,000 meters at 850nm
Insertion Loss: <0.25dB
Return Loss: ±0.35dB
Durability: >500 Matings
Operating Temperature: -20°C to 70°C (-4°F to 158°F)

Product Application of Fiber Optic Patch Cables

Patch cables are used for connections to CATV (Cable Television), telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home), LAN (Local Area Network),FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment, Defense combat readiness, etc.

  1. Gigabit Ethernet
  2. Computer fiber networks
  3. Fiber test equipment
  4. Communication rooms
  5. Fiber Optic Communication System
  6. Optical fiber connected and transmitted equipment
  7. Defense combat readiness
  8. Active device termination
  9. Telecommunication networks
  10. Video and Multimedia
  11. Premise installations
  12. LAN(Local area networks)
  13. FTTH  (Fiber to The Home) and FTTX applications
  14. CATV (Cable Television)
  15. FOS (fiber optic sensor)

 光纤跳线适用范围 英文版

Product Features of Fiber Optic Patch Cords
· Low insertion loss ≤0.3dB;
· High return loss,Multimode UPC≥35dB
· Good repeatability;
· Good interchange;
· Excellent environmental adaptability;
·Precise connector
·Excellent mechanical capability
·Fiber optic connector accord with ISO9001,ROHS,CE
Connector options include: Epoxy
—— LC/UPC —— LC/UPC Temperature coefficient 120tg
Performance   Curing method Outgassed
Insertion Loss: <0.3dB typical(UPC) Residual epoxy Not specified
Return Loss: >35dB typical(UPC) Configuration Control
               Data tracking IL and RL data printed on each cable
Geometry   Cable Type options include:
Radius of curvature     7-25mm Multi mode(62.5/125) Options available
Apex offset             0-50um Simplex and Duplex cables available
Radial fiber height     -50 to +50nm —— Riser —— Plenum
Angular offset          <0.3degrees —— Low smoke/zero halogen —— Bend-insensitive
Fiber roughness         0-25nm Cable outer jacket diameter options include:
Ferrule roughness       0-50um —— 900um —— 1.6mm
Fiber core 0n㎡ —— 2.0mm —— 3.0mm

LC patch cord Connectors
