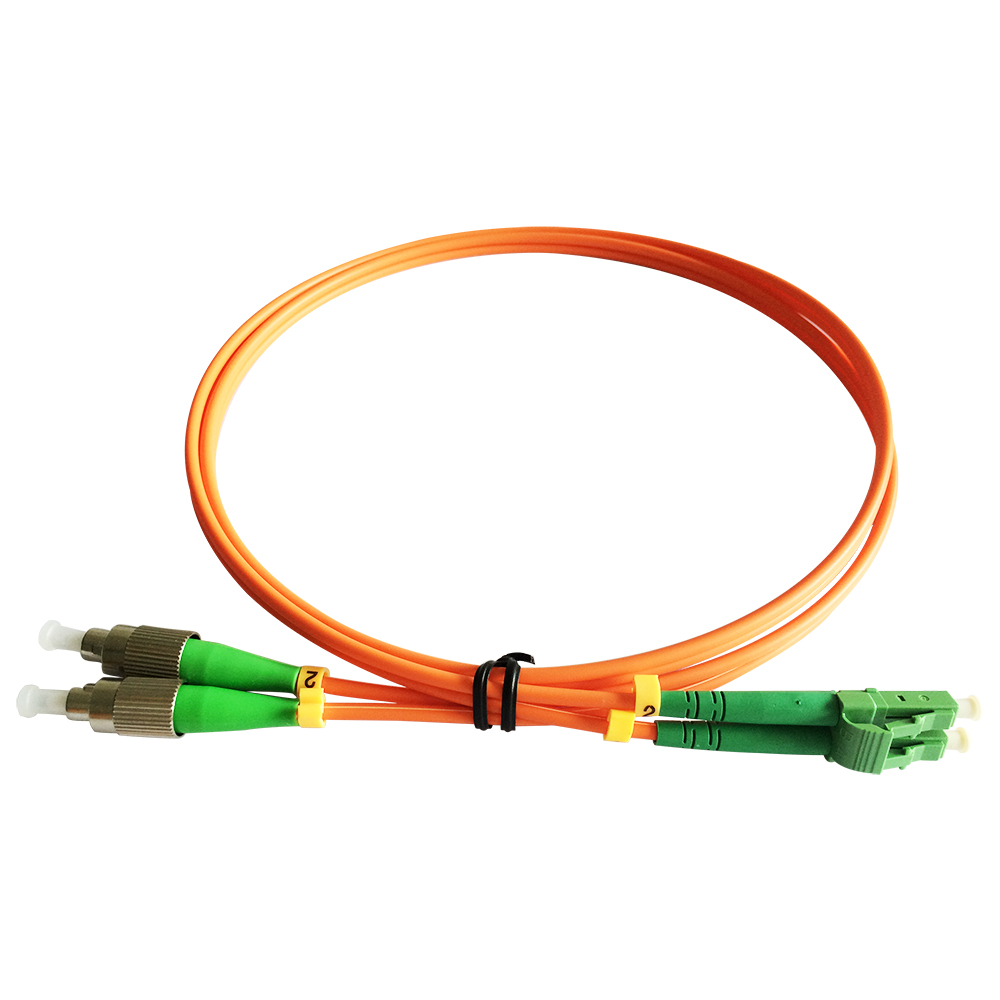

LCAPC-FCAPC Multimode Fiber Optic Patch Cord

Product Introduction of the Multimode Duplex Fiber Patch Cable With LCAPC/FCAPC Connectors

With LC to FC termination, this high quality fiber optic patch cable is specificially designed for ethernet, multimedia, or communication applications. The small LC connector takes HALF the size of traditional SC and ST fiber connectors, since it offers twice the port density of conventional SC and ST connectors to satisfy the need for higher port density in telecom closets, equipment rooms, and work areas.
The LC connector’s RJ-style latch clip design gives each connection greater durability in resisting snagging, pulls, strains and impacts during cabling installs and maintenance. Plus, it is easy to engage and disengage with the “telephone jack style” release mechanism. The plenum rating provides the fire protection required to run this cable within walls and air plenums without using conduit.
The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.

Product Specification (Parameter) of Multimode duplex Fiber Patch Cable LCUPC/LCUPC

Connector LC to FC Jacket OD 3.0mm
Fiber Mode 62.5/125μm or 50/125μm Jacket Color Orange
Polish APC to APC Wavelength 850/1300nm
Fiber Type Duplex Jacket Material LSZH
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥35dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C
Polarity A(Tx) to B(Rx) Fiber Grade G.651

Performance
10 Gigabit Ethernet: up to 33 meters at 850nm, up to 300 meters at 1300nm
1 Gigabit Ethernet: up to 275 meters at 850nm, up to 550 meters at 1300nm
100 Megabit Ethernet: up to 2,000 meters at 850nm
Insertion Loss: <0.25dB
Return Loss: ±0.35dB
Durability: >500 Matings
Operating Temperature: -20°C to 70°C (-4°F to 158°F)

Product Application of Fiber Optic Patch Cables

Patch cables are used for connections to CATV (Cable Television), telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home), LAN (Local Area Network),FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment, Defense combat readiness, etc.

  1. Gigabit Ethernet
  2. Computer fiber networks
  3. Fiber test equipment
  4. Communication rooms
  5. Fiber Optic Communication System
  6. Optical fiber connected and transmitted equipment
  7. Defense combat readiness
  8. Active device termination
  9. Telecommunication networks
  10. Video and Multimedia
  11. Premise installations
  12. LAN(Local area networks)
  13. FTTH  (Fiber to The Home) and FTTX applications
  14. CATV (Cable Television)
  15. FOS (fiber optic sensor)
