Singlemode 9/125 Fiber Optic Cables Indoor & Outdoor

Single Mode fiber is usually 9/125 in construction. This means that the core to cladding diameter ratio is 9 microns to 125 microns.Single Mode fiber optic cable has a small diametral core that allows only one mode of light to propagate. Because of this, the number of light reflections created as the light passes through the core decreases, lowering attenuation and creating the ability for the signal to travel further. This application is typically used in long distance, higher bandwidth runs by Telcos, CATV companies, and Colleges and Universities.

Singlemode 9/125 fiber cable is an excellent choice for high-speed networks that need to span a great distance. This cable has a narrower core than multimode cable, giving you faster transmission speeds and a greater range. Because it can carry signals up to 50 times farther than multimode fiber optic cable, singlemode fiber optic cable is often used over long distances for high-bandwidth applications. Singlemode fiber cable is popular with universities, telephone companies, CATV firms and many other businesses.

cof

Our single-mode 9/125 indoor and outdoor fiber optic cable is available in a range of styles to suit just about any application. This cable has a low dispersion rate with no signal degrading, meaning devices can send data, video and audio at 10-Gigabit Ethernet speeds even when they are miles away from each other. Because we can cut the cable to length with our advanced machinery, we can provide you the exact amount you need without waste.
They are available in dozens of configurations such as:

• Indoor plenum fiber optic cable
• Indoor/outdoor riser singlemode cable
• Direct burial cable
• Self-supporting aerial cable

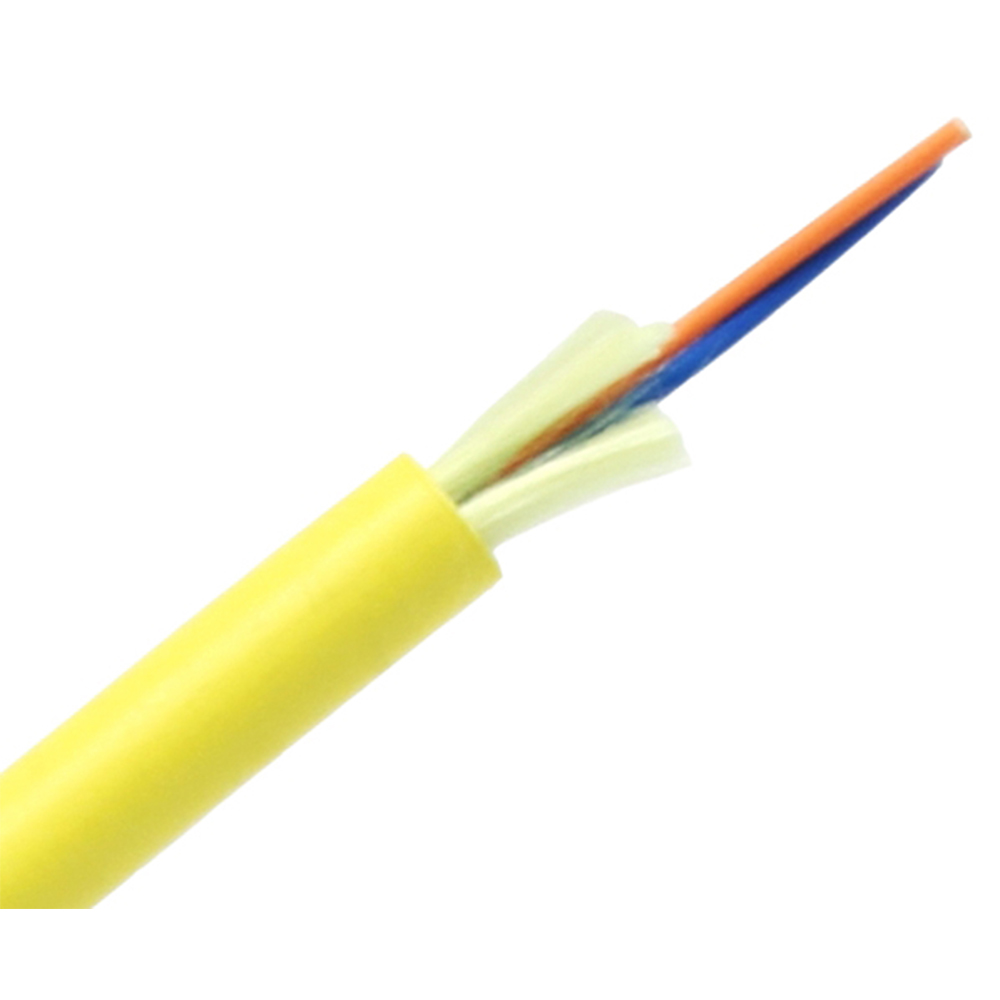

• 2-fiber patch cord cables
• 6-144 strand singlemode cables

Basic indoor 9/125 fiber optic cables are ideal for very large commercial buildings, factories and college dorms. We offer them for general-purpose, plenum, riser and duct installations. Our indoor/outdoor singlemode cables are a good choice for all-around use. These cables provide ease of installation inside and feature outer jackets that provide UV, fungus and flame protection for applications outdoors. Our 6-, 12- and 24-fiber versions are good for small-to-medium networks, while 72-strand and 144-strand fiber cables can support hundreds, even thousands, of users at blazing speeds.
