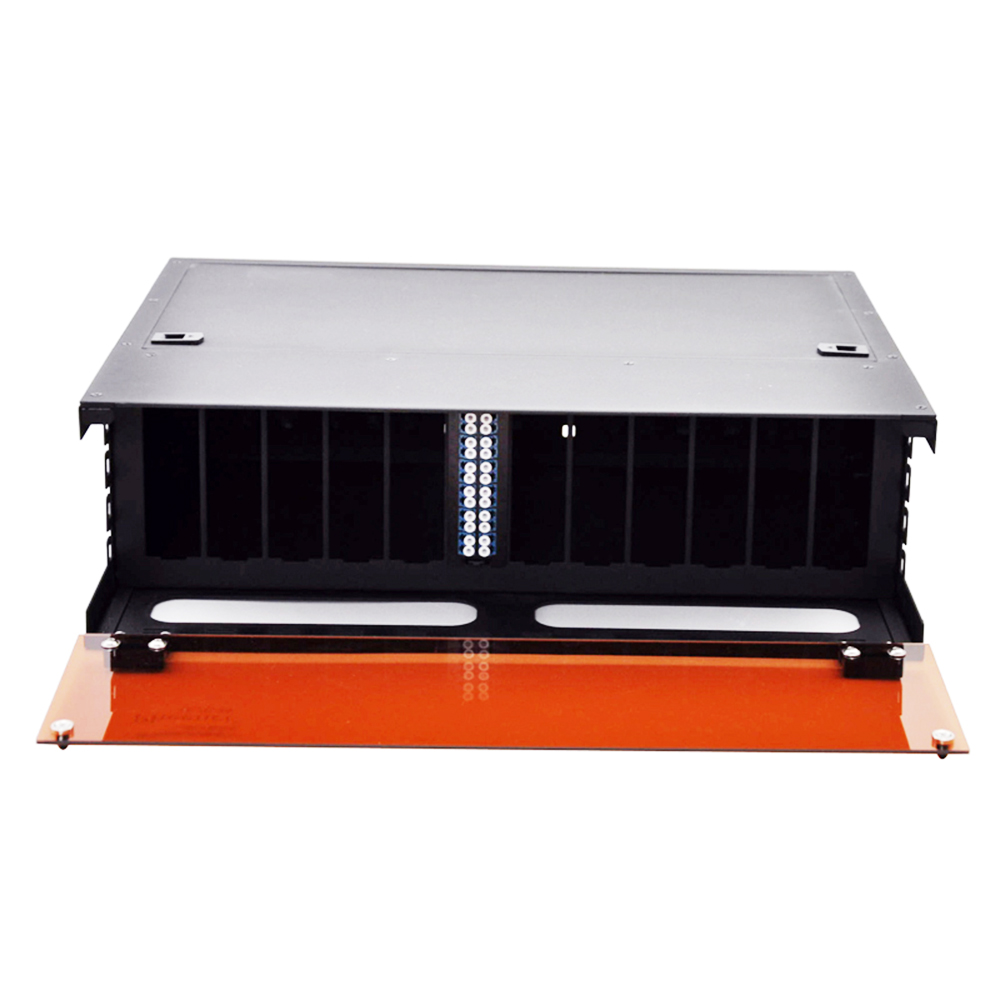

3U MPO Patch Panel

[Description]

10G-Link 3U Standard type Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet. You can assemble with LC adapter panel. and it can finish 1U 96 cores splicing.

插图 1



[Technical Features ]

◆Can install 12pcs MPO cassettes, and manage 288 cores max;

◆Can install 12pcs MPO adapter panels, and manage 288 cores max;

◆Produced with high-quality cold-rolled steel sheet, the main body’s depth is 1.5mm;

◆No fur, no bubble, no screw to fasten, snap-in top cover can be opened without any tools;

◆With high-quality acrylic protect cover in front, look nice and elegant.

DSC_0464 DSC_0466



Product name  3U MPO Patch panel
Material Cold-rolled steel sheet
Size 430*344.6*131.4mm
Manufacturer 10GLINK Communication Equipment Co., Ltd.
Commisioning Date 2017/07/210

图纸
