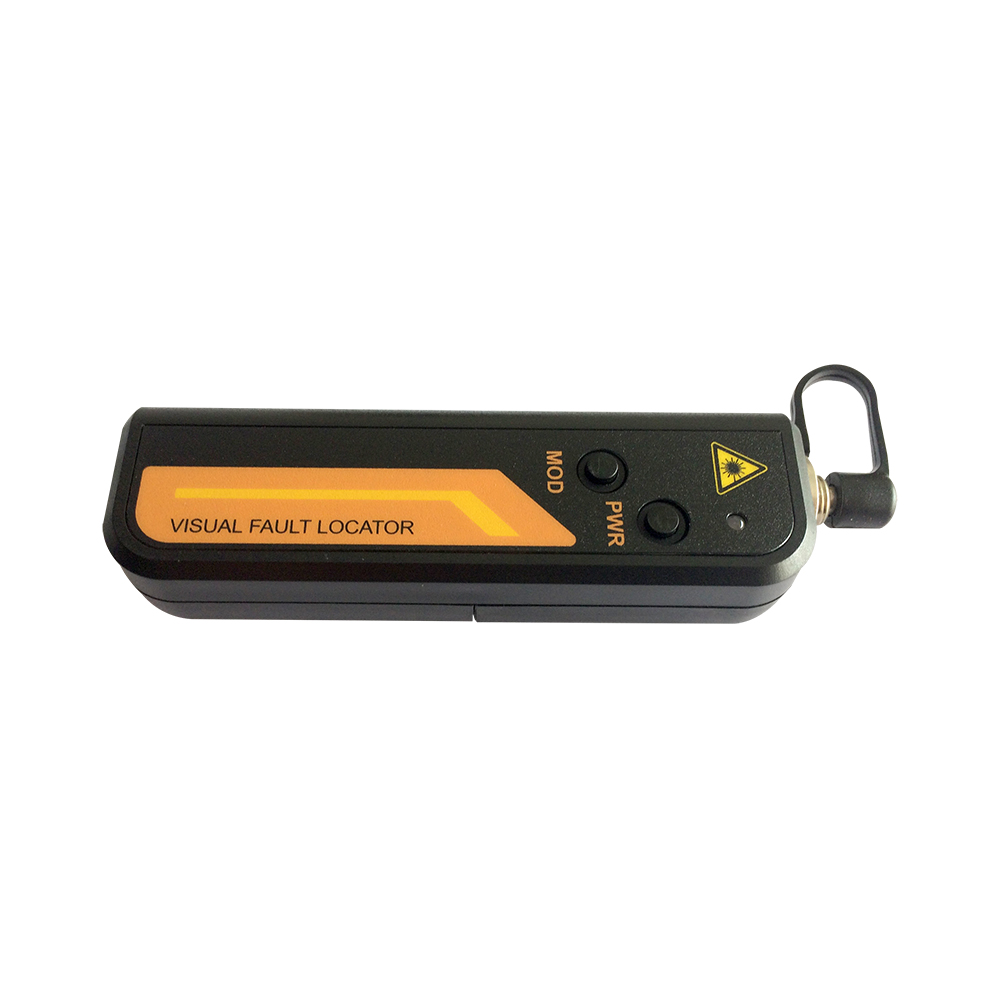

Small Type Visual Fault Locator

Small-Type Visual Fault Locator VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification

 Features

* 2.5mm universal connector, for 1.25mm connectors,FC (Male)-LC (Female)

convertor can be provided on requests.
* Operates either in CW or Pulsed
* Constant output power
* Lower Battery warning
* Long battery life (up to 60 hours)
* Crash-proof and dust-proof design for laser head
* Laser case ground design prevents ESD damage
* Burning testing to ensure the reliability.
* Portable and rugged, easy to use

Specifications

Type

JW3105A

Central Wavelength 650nm±10nm (635nm can be required on request)
Emitter Type FP-LD
Output Power Optional choice for 1mw, 10mw on actual needs
Optical Connector 2.5mm universal connectorFor 1.25mm connectors, FC (Male)-LC (Female) convertorcan be optional on customer requests
Operating Model Both CW and Pulse available
Pulse Frequency 2~3Hz
Power Supply 2  AA alkaline batteries
Battery Operating Time 650nm@1mw ≥65hour650nm@10mw≥15hourTest with Panasonic LR6 AA ALKALINE battery
Operating Temperature -10~+45 (℃)
Storage Temperature -40~+70 (℃)
Dimension (mm) ¢15X180
Weight 900g(Without battery)

Standard Packages

MODEL INCLUDES
JW3105A Main Unit (Original color), 2pcs Alkaline battery, User Manual, and Soft Carrying case.
